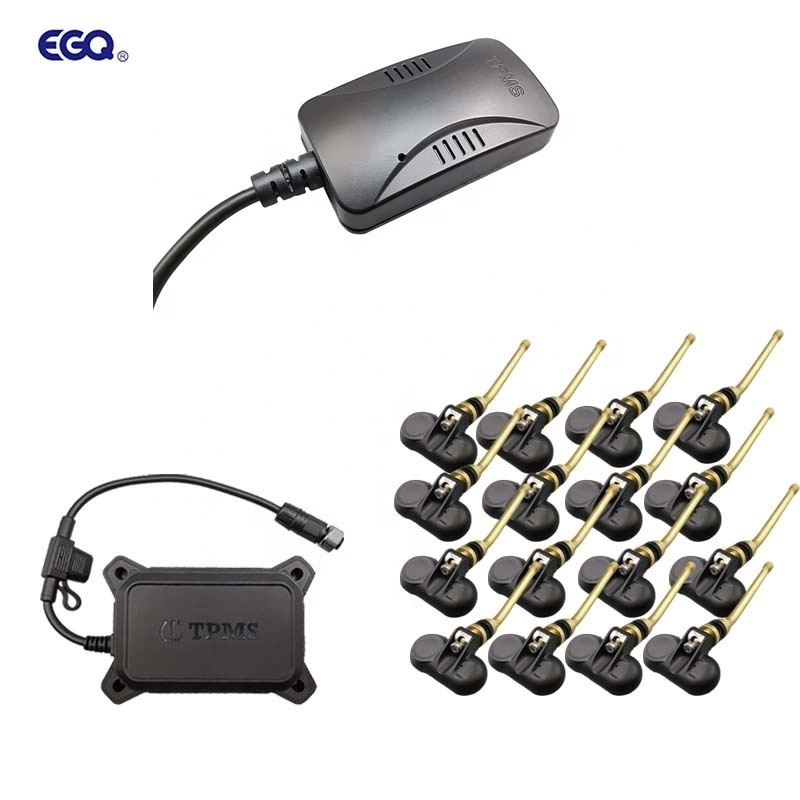

Universal Truck Tire Pressure Monitoring System Receiver 24V

Universal Truck Tire Pressure Monitoring System Receiver 24V

  • Universal Truck Tire Pressure Monitoring System Receiver 24V
  • Universal Truck Tire Pressure Monitoring System Receiver 24V
  • Universal Truck Tire Pressure Monitoring System Receiver 24V
  • Universal Truck Tire Pressure Monitoring System Receiver 24V
  • Universal Truck Tire Pressure Monitoring System Receiver 24V
  • Universal Truck Tire Pressure Monitoring System Receiver 24V
Universal Truck Tire Pressure Monitoring System Receiver 24V
Product Details:
Place of Origin: Guangdong, China
Brand Name: EGQ
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: $308/sets 5-9 sets
Contact Now
All Products
Tire Pressure Monitoring System (38)
Trailer Tire Pressure Monitoring System (37)
Truck Tire Pressure Monitoring System (121)
Bus TPMS (14)
OTR TPMS (32)
6 Tire Pressure Monitoring System (11)
Car Tire Pressure Monitoring System (18)
Motorcycle TPMS (10)
Bike TPMS (8)
Solar Tire Pressure Monitoring System (22)
RV Tire Pressure Monitoring System (45)
TPMS Solutions (34)
Detailed Product Description
Warranty: 1Year Frequency: 433MHz
Voltage: 24V Pressure Range: 0 - 14
Year: Universal Model: Universal
Sensor Type: Internal Car Fitment: Universal
Battery Lifetime: >3years
Highlight:

24V truck tire pressure monitor

,

universal TPMS receiver for trucks

,

truck tire pressure monitoring system

Product Description
Product Description

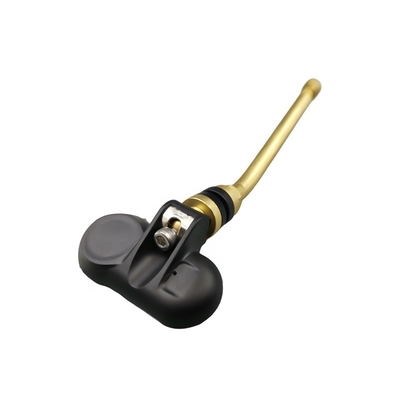

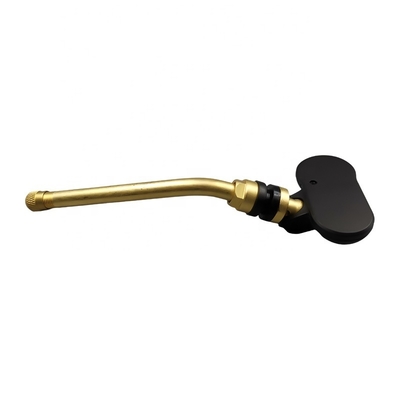

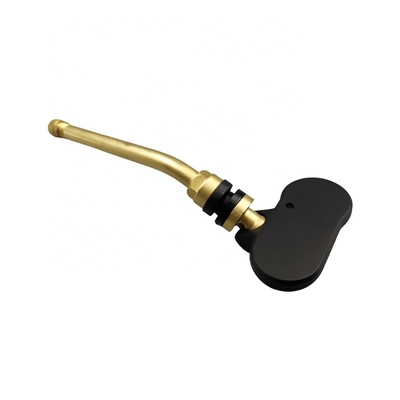

Sensor parameters:

Certification CE
Battery Lifetime >5Years
Pressure Range 0-1400Kpa
Working Voltage 24v
Waterproof Grade IP67
Transimitting Power 8dbm
Storage Temperature -40°C-125C
Working Temperature -35°C-120°C
Temperature Resolution +3°C(25°C)
Transmitting Frenquence 433.92MHz

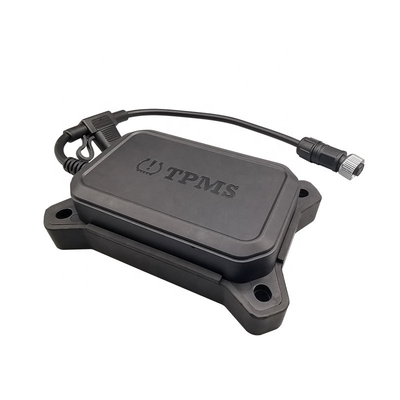

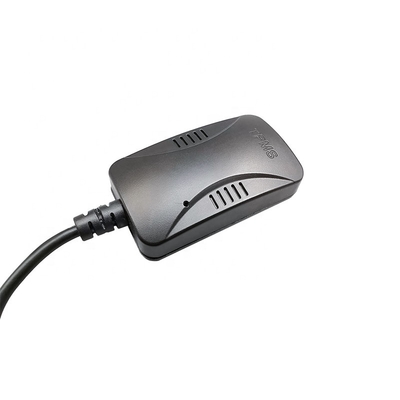

 Monitor parameters:

Screen On Working Current: <12mA
Screen Off Working Current: <4.5mA
Working Temperature: -30°C~85°C
Storage Temperature: -40°C~90°C
Receiving Frequency: 433.92MHZ±50KHZ
Battery Capacity: 480mAh
Working Voltage: 24V
Working Time: Charging  permenent life
Sensitivity: -95dbm
Screen: LCD  screen.



      Universal Truck Tire Pressure Monitoring System Receiver 24V 0Universal Truck Tire Pressure Monitoring System Receiver 24V 1Universal Truck Tire Pressure Monitoring System Receiver 24V 2Universal Truck Tire Pressure Monitoring System Receiver 24V 3Universal Truck Tire Pressure Monitoring System Receiver 24V 4Universal Truck Tire Pressure Monitoring System Receiver 24V 5





Universal Truck Tire Pressure Monitoring System Receiver 24V 6








Packaging & Shipping

Universal Truck Tire Pressure Monitoring System Receiver 24V 7

Company Information

Universal Truck Tire Pressure Monitoring System Receiver 24V 8Universal Truck Tire Pressure Monitoring System Receiver 24V 9Universal Truck Tire Pressure Monitoring System Receiver 24V 10Universal Truck Tire Pressure Monitoring System Receiver 24V 11Universal Truck Tire Pressure Monitoring System Receiver 24V 12

why choose us?

1,We have our own professional R&D team.one stop quality service of R&D/manufacturing and aaplication can be provide here.and we have rich severice experience on ODM and OEM for all kindly of customers.



2.We make all product solution and SMT by ourself,we can control the product quality well.



3.We are realiable manufacturer,we have 16years related industrial experience.



4 We have a professional technical team to provide 24H online service.



5, We have a very strong quality control team are always available for checking quality .



6, Samples are always available for checking quality and can be dispatched to you very quickly.



7, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.



8, Warranty :12months
