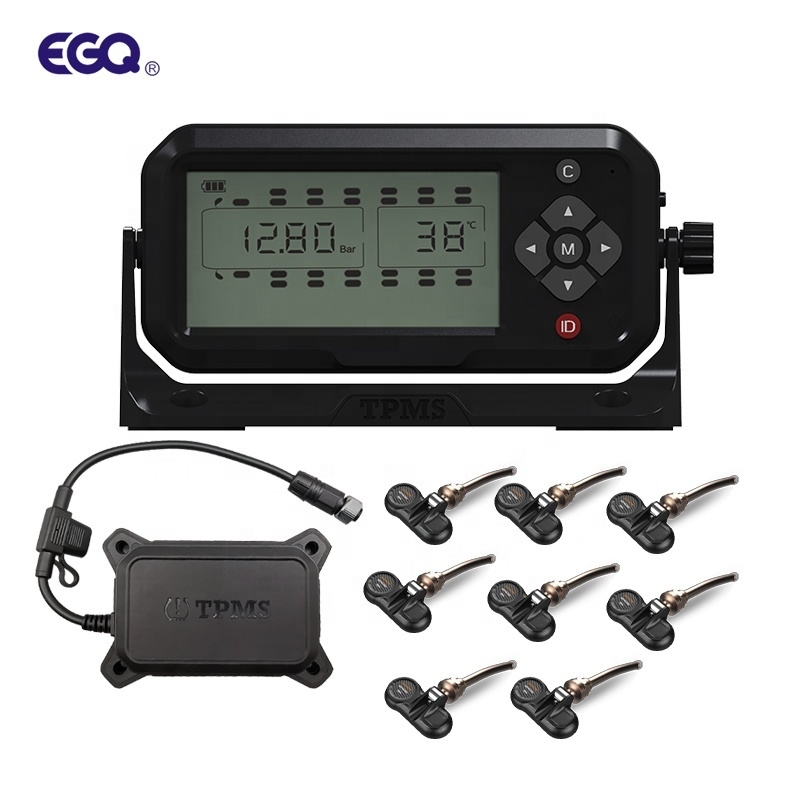

8 wheel valve sensor, repeater, receiver tire pressure detection system

8 wheel valve sensor, repeater, receiver tire pressure detection system

  • 8 wheel valve sensor, repeater, receiver tire pressure detection system
8 wheel valve sensor, repeater, receiver tire pressure detection system
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: T8QZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 2-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000 sets per month
Contact Now
All Products
Tire Pressure Monitoring System (38)
Trailer Tire Pressure Monitoring System (37)
Truck Tire Pressure Monitoring System (105)
Bus TPMS (14)
OTR TPMS (32)
6 Tire Pressure Monitoring System (11)
Car Tire Pressure Monitoring System (18)
Motorcycle TPMS (10)
Bike TPMS (8)
Solar Tire Pressure Monitoring System (22)
RV Tire Pressure Monitoring System (45)
TPMS Solutions (34)
Detailed Product Description
Battery Lifetime: >5years Working Voltage: 24V
Working Temperature: -35℃-120℃ Temperature Resolution: -35℃-120℃
Pressure Range: 0-1400Kpa Pressure Resolution: ±10Kpa
Waterproof Grade: IP67 Transimitting Power: 8dbm
Transmitting Frenquence: 433.92MHz Certification: Ce
Highlight:

Wireless Truck Tire Pressure Monitoring System

,

Waterproof Truck Tire Pressure Monitoring System

,

Waterproof IP67 Tire Monitor System

T8QZ1  Description:

Our Truck Tire Pressure Monitoring System is a tire pressure detection device designed specifically for trucks. It is a 50mm*50mm*20mm in size, powered by battery, and has a waterproof level of IP67. It can detect tire pressure ranging from 0 to 99psi. The system is equipped with advanced technology to monitor the tire pressure and detect any changes in real time. It is also designed to alert the driver if the tire pressure is too low or too high. The system provides a more efficient and reliable way to monitor and maintain tire pressure to ensure the safety of drivers and their vehicles. It also ensures that the truck is always running at optimal performance. In addition, it is easy to install and use. With our Truck Tire Pressure Monitoring System, you can be sure that your truck is always running at its best.

product description for China supplier OEM TPMS solar power Tire pressure monitoring system

Sensor parameters:

Battery lifetime >5years
working voltage 2.1-3.6V
storage temperature -40℃-125℃
working temperature -35℃-120℃
temperature resolution ±3℃(25℃)
pressure range 0-1400Kpa
pressure resolution ±10Kpa
waterproof grade IP67
transimitting power 8dbm
Transmitting frenquence 433.92MHz

Monitor parameters:

Battery capacity: 480mAh
Working voltage: 24V
Screen on working current: <12mA
Screen off working current: <4.5mA
Working temperature: -30°C~85°C
Storage temperature: -40°C~90°C
sensitivity: -95dbm
working time: Charging permenent life
Receiving frequency: 433.92MHZ±50KHZ
Screen: LCD screen.


Company Information


why choose us?

1,We have our own professional R&D team.one stop quality service of R&D/manufacturing and aaplication can be provide here.and we have rich severice experience on ODM and OEM for all kindly of customers.



2.We make all product solution and SMT by ourself,we can control the product quality well.



3.We are realiable manufacturer,we have 16years related industrial experience.



4 We have a professional technical team to provide 24H online service.



5, We have a very strong quality control team are always available for checking quality .



6, Samples are always available for checking quality and can be dispatched to you very quickly.



7, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.



8, Warranty :12months
