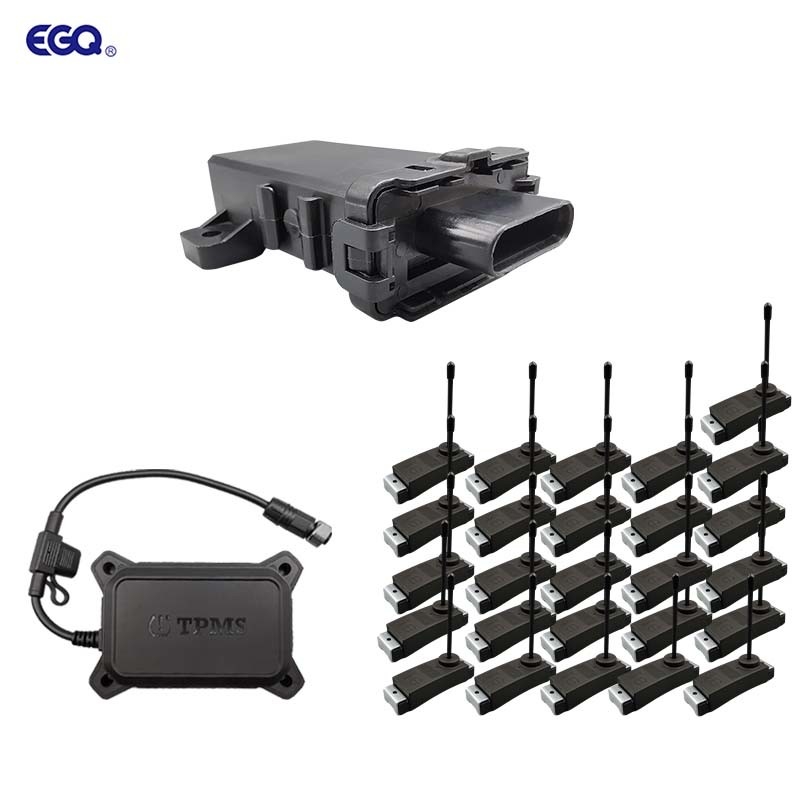

26 bundles of sensors, Repeaters, CAN receiver tire pressure monitoring system

Product Description:

CAN standard communication interface Support protocol customization 1939 format Integrated truck TPMS

Product parameters

Sensor (internal binding type sensor)

Plastic parts material Nylon + glass fiber
Machine weight (excluding bind belt) 30g±1g
Shell temperature resistance -50℃-150℃
bind belt material 304 stainless steel
Power supply mode Button Battery
battery model CR2050
battery capacity 345mAh
Working voltage 2.1V-3.6V
Working temperature -40℃-125℃
working temperature 8.7mA
Self-test current 2.2mA
Dormant current 0.5uA
Working temperature -40℃-125℃
Transmit frequency 433.92MHZ
Transmit power >-12dBm
Dimensions : 7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna)

component of product

Alarm function

leakage warning

High pressure warning

Low pressure warning

High temperature warning

Low power warning

No signal warning

Product attention

Parameter Setting

Tire quantity selection setting

Pressure unit setting

Temperature unit setting

Customization

1. Could design your own logo on the product

2. Could design the special color box, blister card and double blister as your requirement

3. Offering you the high-quality product with attractive and competitive price!

Products Description

1. Fit for 2-26 tyre vehicle of DC 12V/24V

2. Tyre pressure sensor range : 0-14 Bar / 0-203 Psi

3. Tyre temperature high limit :125.C

4. switched to another vehicle easily

5. Flexible display placement on dashboard

6. Compact-size wireless display

7. Intelligent sleeping mode for power saving

8. use chips Freescale 87E, Japanese Maxell battery.

1 Operation is not suggested during driving.

2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately.
Drivers need to check and repair the tire immediately, in order to avoid risk of accident due to tire pro
