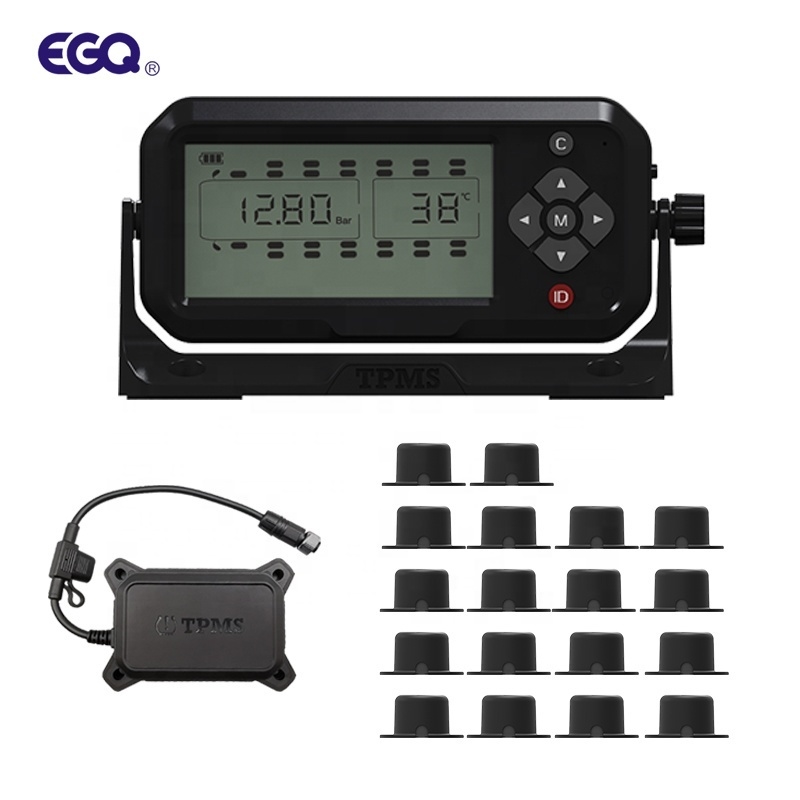

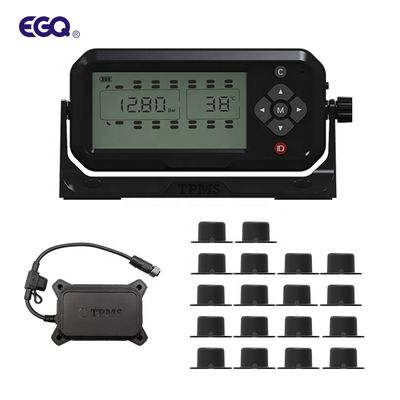

18-wheel adhesive sensor, repeater, receiver tire pressure monitoring system

Product Details:

Place of Origin:	China
Brand Name:	EGQ
Certification:	CE,FCC,ROHS,IATF16949:2016
Model Number:	T18TZ1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	boxs
Delivery Time:	2-15 work days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000 sets per month

Contact Now

All Products

Tire Pressure Monitoring System (38)

Trailer Tire Pressure Monitoring System (37)

Truck Tire Pressure Monitoring System (105)

Bus TPMS (14)

OTR TPMS (32)

6 Tire Pressure Monitoring System (11)

Car Tire Pressure Monitoring System (18)

Motorcycle TPMS (10)

Bike TPMS (8)

Solar Tire Pressure Monitoring System (22)

RV Tire Pressure Monitoring System (45)

TPMS Solutions (34)

Detailed Product Description

Battery Lifetime:	>5years	Working Voltage:	24V
Storage Temperature:	-40℃-125℃	Working Temperature:	-35℃-120℃
Temperature Resolution:	±3℃(25℃)	Pressure Range:	0-1400Kpa
Waterproof Grade:	8dbm	Transmitting Frenquence:	433.92MHz
Certification:	Ce
Highlight:	Wireless Sensor Truck Tire Pressure Monitor , 1000mAh Battery Truck Tire Pressure Monitor , Wireless Sensor Tyre Monitoring System

T18TZ1 Description:

product description for China supplier OEM TPMS solar power Tire pressure monitoring system

Sensor parameters:

Battery lifetime	>5years
working voltage	2.1-3.6V
storage temperature	-40℃-125℃
working temperature	-35℃-120℃
temperature resolution	±3℃(25℃)
pressure range	0-1400Kpa
pressure resolution	±10Kpa
waterproof grade	IP67
transimitting power	8dbm
Transmitting frenquence	433.92MHz

Monitor parameters:

Battery capacity:	480mAh
Working voltage:	24V
Screen on working current:	<12mA
Screen off working current:	<4.5mA
Working temperature:	-30°C~85°C
Storage temperature:	-40°C~90°C
sensitivity:	-95dbm
working time:	Charging permenent life
Receiving frequency:	433.92MHZ±50KHZ
Screen:	LCD screen.
