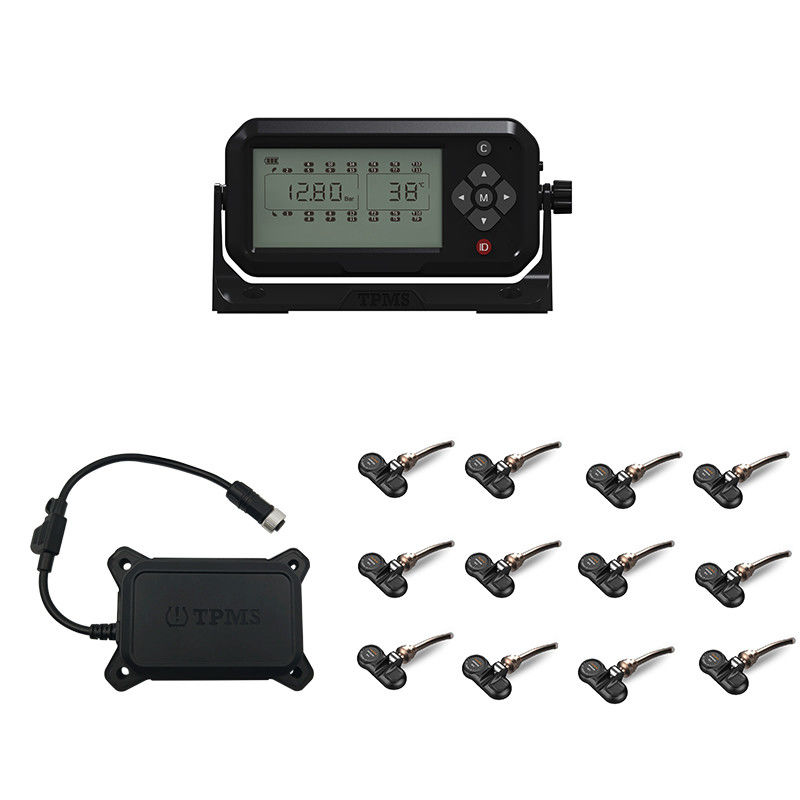

12 wheel tire truck tire pressure monitoring internal digital truck bus tire monitoring pressure sensor tpms
Intelligent Alarm
1. Fast Leakage Alert
It will start when the tire pressure leakage over 5Kpa in 5s
2. Low Leakage Alert
It will start to warn when the tire pressure is under the presupposed lower limit
3. High Pressure Alert
It will start to warn when the tire pressure is over the upper limit
4. Low Pressure Alert
It will start to warn when the tire pressure is under the lower limit
5. High Temperature Alert
It will start to warn when the inner tire temperature is over the upper limit
6. Lower Power Alert
It will start to warn when the battery voltage is under the presupposed limit
7. No Signal Alert
It will start to warn when the tire condition can not be detected over time
Product parameters
| Receiver(12 wheels) |
|
| Display interface |
LCD segment code (12 wheels with the same display) for receiver |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃~80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Internal battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
within 1 years |
| Pressure range |
0bar-14bar/0psi~203psi |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃~150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working current |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
Sensors Warranty Within 12 months after delivery day |
| Pressure range |
0psi~203psi |
| Type |
Bundled sensors |
1. What are the advantages of TPMS ?
Reduce Driving Risks
Improve Fuel Economy
Prolong lifetime of the tires
2.Product attention:
It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.
Incorrectly installation will affect the use of this product or make damage. experienced technician is preferred to install this product. please be careful not to damage the sensor transmitter when disassembling tires again. Valve of internal sensor is not available for repeat assembling/disassembling.
Monitor Features:
1. Reliable and easy to install.
2. Large LCD screen.
3. Built-in rechargeable lithium battery.
4. Automatical backlight.
5. Configurable high/low pressure warnings.
6. Configurable high temperature warnings.
7. Visible and audible alerts.
8. Selectable pressure units ( BAR, PSI ).
9. Temperature unit selectable (℃, ℉)
10. Monitors up to 22 tires maximum.
11. Long range between monitor and sensors.
12. Individual configuration of axle high/low pressure warnings.
13. Awake sensor to program ID code.
