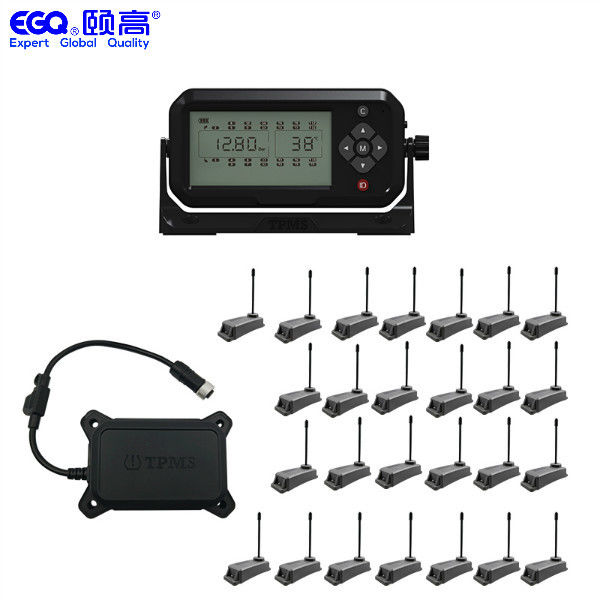

Vehicle 26 Tire TPMS Truck Tire Pressure Monitoring System
component of product
Alarm function
leakage warning
High pressure warning
Low pressure warning
High temperature warning
Low power warning
No signal warning
Parameter Setting
Tire quantity selection setting
Pressure unit setting
Temperature unit setting
Pressure threshold setting
High temperature threshold setting
Restore factory setting
Match sensor(Match tires)
Exchange tires’ position
Intelligent repeater forwarding function
Product parameters
| Receiver(26 rounds) |
|
| Display interface |
LCD segment code (24 wheels with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output(about receiver) |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Pressure range |
0bar~14bar/0psi~203psi |
| type |
TRUCK TPMS FOR 24 wheeels with repeater |
| color |
black |
| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30g±1g |
| Shell temperature resistance |
-50℃-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1Volt-3.6Volt |
| Working temperature |
-40℃-125℃ |
| working current |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions : |
7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna) |
Main features:
1. LCD display with USB input charging slot.
2. RF wireless transmission.
3. receiver Battery rechargeable by charging
4. Flexible display place on dashboard freely.
5. High capacity battery for a month use.
6. Display showing 4tire pressure and tempreature all at a glance.
7. Compatible with both rxternal and internal sensor.
8. DIY installation for external sensor
9. Replacement battery for external sensor:CR2050B
10. Long life battery for internal sensor.
11. Visual and audible warning.
12. Convertible pressure and temperature unit.
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving. It can real-time monitor tire pressure and temperature conditions. Real-time monitoring and warning can not only avoid
risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check our product’s quality. If you just need aTPMS sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Q: What can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q: What is your term of delivery?
A: We accept EXW, FOB Shenzhen is ok. You can choosethe one which is the most convenient or cost effective for you.
Q: What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.
