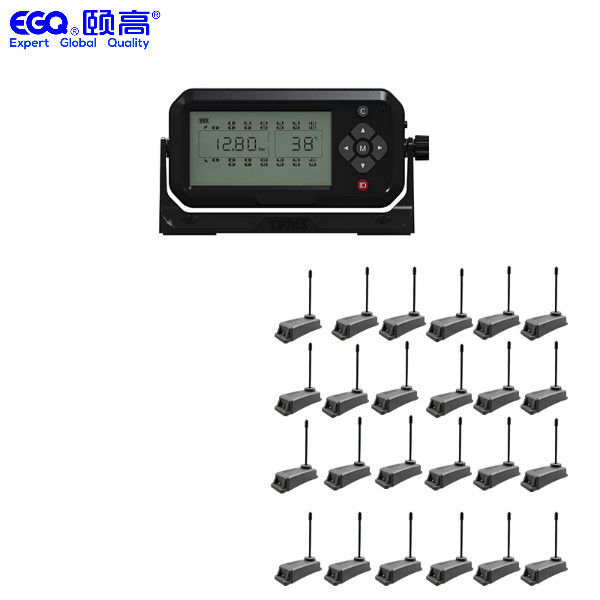

24 Wheels Trailer Truck Universal Tyre Pressure Monitoring System
24 Wheeels Trailer Truck Universal Tyre Pressure Monitoring System
component of product
Alarm function
leakage warning
High pressure warning
Low pressure warning
High temperature warning
Low power warning
No signal warning
Parameter Setting
Tire quantity selection setting
Pressure unit setting
Temperature unit setting
Pressure threshold setting
High temperature threshold setting
Restore factory setting
Match sensor(Match tires)
Exchange tires’ position
Intelligent repeater forwarding function
Installation instruction
Receiver installation
Repeater installation
Installation instruction
External installation
Main features:
1. LCD display with USB input charging slot.
2. RF wireless transmission.
3. receiver Battery rechargeable by charging
4. Flexible display place on dashboard freely.
5. High capacity battery for a month use.
6. Display showing 4tire pressure and tempreature all at a glance.
7. Compatible with both rxternal and internal sensor.
8. DIY installation for external sensor
9. Replacement battery for external sensor:CR2050B
10. Long life battery for internal sensor.
11. Visual and audible warning.
12. Convertible pressure and temperature unit.
Product parameters
| Receiver(26 rounds) |
|
| Display interface |
LCD segment code (22 wheels with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output(about receiver) |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Pressure range |
0bar~14bar/0psi~203psi |
| type |
TRUCK TPMS FOR 22 wheeels |
| color |
black |
| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30g±1g |
| Shell temperature resistance |
-50℃-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1Volt-3.6Volt |
| Working temperature |
-40℃-125℃ |
| working current |
8.7milliampere |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions : |
7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna) |
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving. It can real-time monitor tire pressure and temperature conditions. If detected
any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm
and flash warning icon to remind the driver.
