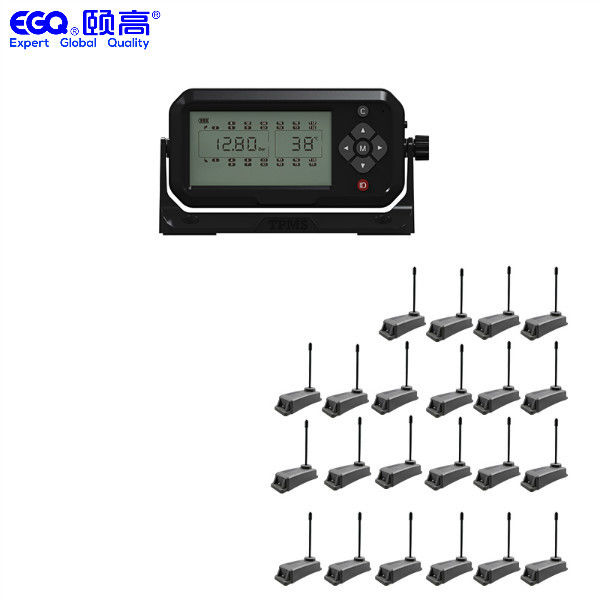

Wireless Twenty Two Tire External Tyre Pressure Monitoring System
Main features:
1. LCD display with USB input charging slot.
2. RF wireless transmission.
3. receiver Battery rechargeable by charging
4. Flexible display place on dashboard freely.
5. High capacity battery for a month use.
6. Display showing 4tire pressure and tempreature all at a glance.
7. Compatible with both rxternal and internal sensor.
8. DIY installation for external sensor
9. Replacement battery for external sensor:CR2050B
10. Long life battery for internal sensor.
11. Visual and audible warning.
12. Convertible pressure and temperature unit.
component of product
Alarm function
leakage warning
High pressure warning
Low pressure warning
High temperature warning
Low power warning
No signal warning
Parameter Setting
Tire quantity selection setting
Pressure unit setting
Temperature unit setting
Pressure threshold setting
High temperature threshold setting
Restore factory setting
Match sensor(Match tires)
Exchange tires’ position
Intelligent repeater forwarding function
Product parameters
| Receiver(26 rounds) |
|
| Display interface |
LCD segment code (22 wheels with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output(about receiver) |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Pressure range |
0bar~14bar/0psi~203psi |
| type |
TRUCK TPMS FOR 22 wheeels |
| color |
black |
| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30g±1g |
| Shell temperature resistance |
-50℃-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1Volt-3.6Volt |
| Working temperature |
-40℃-125℃ |
| working current |
8.7milliampere |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions : |
7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna) |
Product attention
Operation is not suggested during driving.
Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately.
Drivers need to check and repair the tire immediately, in order to avoid risk of accident due to tire problem.
Tires have natural micro leakage phenomenon. It is a normal phenomenon that pressure of tire decreases over time. Pressure decreasing don't have directly relationship with install this products.
1. Q: Can we get your free samples?
A: Yes,you can.Our samples are only free for the customers who confirm bulk order.But the freight for express is borne by buyer.
2. Q: Can we do printing or label printing on the sensor?
A: Yes,you can.We could offer various printing methods:label printing,screen print,hot stamping,frost,etc.And as to printing color:Color can be made according to PANTONE color number .
3. Q: Can you produce sensor according our design?
A: Yes,we could produce models according to customer’s design.
4. Q: What is the normal lead time?
A: For stock products,the products are be sent within 7days after receiving payment.
5. Q: How do you control the quality?
A: We do leak test for 3times before packing.
6. Q: If any defective sensor,how can you settle it for us?
A: We will 1:1replacement for the defective sensors which cause by ourside.
