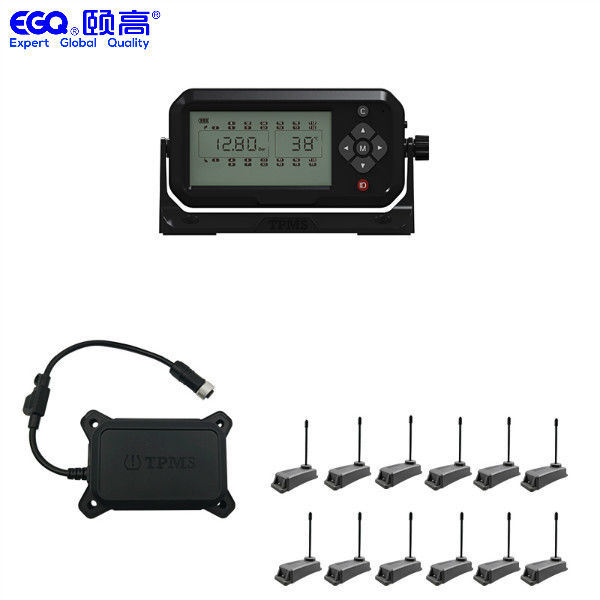

433.92 MHZ Twelve Tire Truck TPMS Wifi Tyre Pressure Monitor
component of product
Tire quantity selection setting
Pressure unit setting
Temperature unit setting
Product parameters
| Receiver(26 rounds) |
|
| Display interface |
LCD segment code (26 tires with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output(about receiver) |
| Machine weight (excluding packaging) |
230gram±5gram |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm*6.5cm*2.2cm |
| Pressure range |
0bar~14bar/0psi~203psi |
| type |
internal binding type sensors |
| color |
black |
| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30gram±1gram |
| Shell temperature resistance |
-50-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| Working temperature |
-40℃-125℃ |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions : |
7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna) |
Product attention
It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.
Incorrectly installation will affect the use of this product or make damage. experienced technician is preferred to install this product. please be careful not to damage the sensor transmitter when disassembling tires again. Valve of internal sensor is not available for repeat assembling/disassembling.
Please use power cable provided by factory. It is not allowed to tie receiver by power cable, as I will damage product or effect signal . And you will lose warranty.
Most of the DVD or other high power equipment in the market are all have electromagnetic interference. In order to avoid electromagnetic interference, receiver is suggest to install 50CM away from such kind of products. The best position is upper left corner, upper right corner of A column and middle of front seats (away from control)
There won't be notice if there is any change of products ( performance, specifications, warranty).
* This system send signal by wireless transmission, so it may not receive signal under some certain condition, like interference, error operation or improper installation. If receiver can't receive signal for 10 minutes, please drive car away from current place ( maybe there is strong signal interference ) or go to authorized tire repair center to check is there any problem of sensor or battery of sensor is run out( battery life maybe shorter than normal use, as there is often abnormal condition occurs, sensor need to send signal to warn driver.)
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: For TPMS Product,we will send goods to you within 15 work days after we receive your 70% Balance due.
For OEM products,the delivery time is 30-35 work days after we receive your 70% Balance due.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.OR T/T, L/C, D/A and western union.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of extra fee but do not pay the cost of freight.
Q: What is your shipping way?
A: We will help you to choose the best shipping way according to your detail requirements,By sea,By air or By express,etc.
Q. How do you control the quality?
A: We will make samples before mass production, and after sample approved, we will begin mass production.Doing 100% inspection during production; then do random inspection.before packing; taking pictures after packing.
Q. If any quality problem, how can you settle it for us?
A: Any problem, our company has Professional technicians will be deal with it timely.
