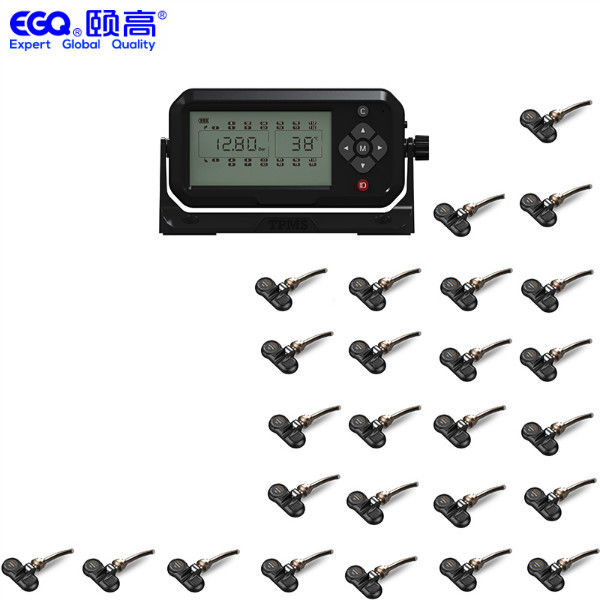

Valve Type Sensors Bluetooth Tire Pressure Monitor For Semi Truck

Valve Type Sensors Bluetooth Tire Pressure Monitor For Semi Truck

  • Valve Type Sensors Bluetooth Tire Pressure Monitor For Semi Truck
Valve Type Sensors Bluetooth Tire Pressure Monitor For Semi Truck
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B26QZ0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Display Interface: LCD Segment Code (26 Wheels With The Same Display) For Receiver Receiver Port: Vehicle Battery, ACC Input And RS232 Output
Pressure Range: 0bar-14bar/0psi~203psi Working Frequency: 433.92 MHz
Name: Bluetooth TPMS Dimensions: 5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding Valve)
Highlight:

Bluetooth Tire Pressure Monitor

,

Bluetooth TPMS

Valve Type Sensors Bluetooth Tire Pressure Monitor For Semi Truck



Functions and Features:



1. Real time monitor the pressure and temperature of the tires.

2. Intelligent sleeping mode for power saving.

3. Tire leaking warning

4. Visual and audible warning for abnormal tire pressure and temperature

5. 4 tires pressure and temperature data at a glance

6. Fixed Bar or Psi pressure unit for selection

7. Fixed temperature unit for selection

(This product can real time minitor the pressure and temperature of the tires and give the warning.

But it can't prevent the accident happen,so we don't take responsiblity for the direct or indirect loss because of the damage of this product.)



Product parameters



Receiver(26 wheels)
Display interface LCD segment code (26 wheels with the same display) for receiver
Receiver port Vehicle battery, ACC input and RS232 output
Machine weight (excluding packaging) 230g±5g
Abnormal self-recovery Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
Working temperature -30℃~80℃
Power supply mode Internal rechargeable lithium battery and external power supply
Interface voltage Vehicle battery 24V, ACC24V
Internal battery voltage 3.5V-4.2V
Bright working current 12mA
Black working current (for data communication) 4.5mA
Reception sensitivity -95dbm
Dimensions 13.5cm(length)*6.5cm(width)*2.2cm(height)
Warranty within 1 years
Pressure range 0bar-14bar/0psi~203psi





Sensor(Ordinary internal type sensor)
Plastic parts material Nylon + glass fiber
Shell temperature resistance -50℃~150℃
Antenna sheet material Phosphorus copper nickel plating
Machine weight (excluding valve) 16g±1g
Power supply mode Button Battery
battery model CR2050
battery capacity 345mAh
Working voltage 2.1V-3.6V
working current 8.7mA
Self-test current 2.2mA
Dormant current 0.5uA
Working temperature -40℃-125℃
Transmit frequency 433.92MHZ
Transmit power >-12dBm
Dimensions 5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve)
Warranty Sensors Warranty Within 12 months after delivery day
Pressure range 0psi~203psi
Type tpms Valve type sensors



Product attention:



Please use power cable provided by factory. It is not allowed to tie receiver by power cable, as I will damage product or effect signal . And you will lose warranty.



 Most of the DVD or other high power equipment in the market are all have electromagnetic interference. In order to avoid electromagnetic interference, receiver is suggest to install 50CM away from such kind of products. The best position is upper left corner, upper right corner of A column and middle of front seats (away from control)

Esteemed customer:



Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.

If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.

Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.

In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.

Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
