Products Description
1. Fit for 2-26 tyre vehicle of DC 12V/24V
2. Tyre pressure sensor range : 0-14 Bar / 0-203 Psi
3. Tyre temperature high limit :125.C
4. switched to another vehicle easily
5. Flexible display placement on dashboard
6. Compact-size wireless display
7. Intelligent sleeping mode for power saving
8. use chips Freescale 87E, Japanese Maxell battery.
Product parameters
| Receiver(26 wheels) |
|

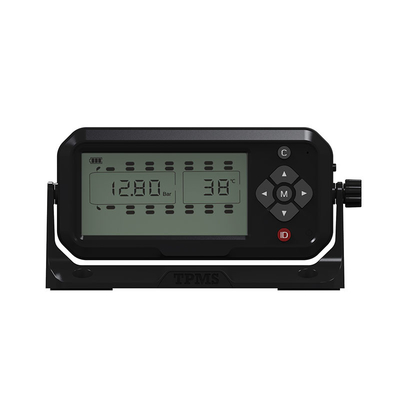

| Display interface |
LCD segment code (26 wheels with the same display) for receiver |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃~80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Internal battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
within 1 years |
| Pressure range |
0bar-14bar/0psi~203psi |

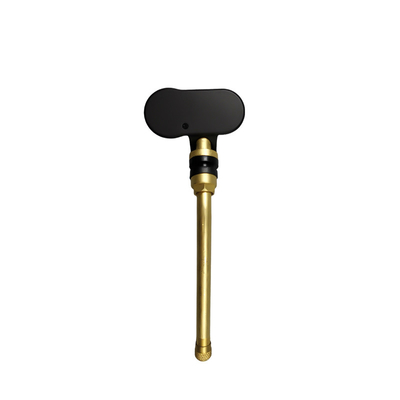

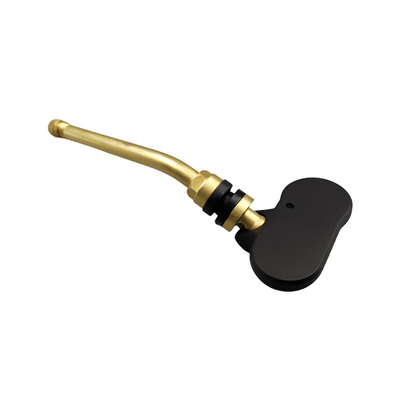

| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃~150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working current |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
Sensors Warranty Within 12 months after delivery day |
| Pressure range |
0~203psi |
| Type |
truck tpms Valve sensor |
Product attention:
Tires have natural micro leakage phenomenon. It is a normal phenomenon that pressure of tire decreases over time. Pressure decreasing don't have directly relationship with install this products.
It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.
If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.
Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
Q: Why Choose EGQ TPMS?
A: Professional tool worth having, UNIVERSAL FIT CAR TRUCK Protect your vehicle, Extend useful life
of tyre.Save your FUEL cost, Enhance your driving ability ,The key reason should be repeated three times.
Keep you and your family safer,Keep you and your family safer,Keep you and your family safer.
Q: Are you manufacturer or trader?
A: We are a manufacturer specialized in machining field for 8 years.
Q: What's your location? Which is the nearest port for EGQ TPMST?
A: EGQ TPMS is located in guangdong,shenzhen city, where is near from hongkong and shenzhen port.
Q: What's your MOQ?
A: 200pcs for Solar TPMS. 1000pcs for BLE TPMS. 100 pcs for truck TPMS
