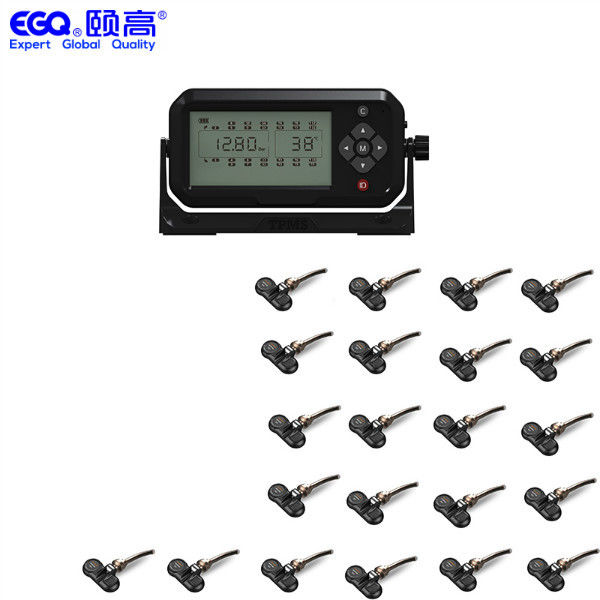

Digital 22 Tyres Wireless Tpms Tire Pressure Monitoring System

Digital 22 Tyres Wireless Tpms Tire Pressure Monitoring System

  • Digital 22 Tyres Wireless Tpms Tire Pressure Monitoring System
Digital 22 Tyres Wireless Tpms Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B22QZ0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Display Interface: LCD Segment Code (26 Wheels With The Same Display) For Receiver Receiver Port: Vehicle Battery, ACC Input And RS232 Output
Pressure Range: 0-14bar/0psi~203psi Working Frequency: 433.92 MHz
Type: Valve Truck Tpms Sensor Working Current: 8.7mA
Highlight:

Wireless Tpms Tire Pressure Monitoring System

,

22 Tyres Wireless Tpms

,

Wireless Tpms

Digital 22 Tyres Wireless Tpms Tire Pressure Monitoring System





TPMS Benefits

Puncture Protection: Real time monitor pressure and temperature nip in the bud.

Save the Fuel: Keeping correct tire pressure, lower fuel consumption.

Less Treadwear: Insufficient pressure causes treadwear which shorten the tire life span.



Product parameters



Receiver(26 wheels)
Display interface LCD segment code (26 wheels with the same display) for receiver
Receiver port Vehicle battery, ACC input and RS232 output
Machine weight (excluding packaging) 230g±5g
Abnormal self-recovery Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
Working temperature -30℃~80℃
Power supply mode Internal rechargeable lithium battery and external power supply
Interface voltage Vehicle battery 24V, ACC24V
Internal battery voltage 3.5V-4.2V
Bright working current 12mA
Black working current (for data communication) 4.5mA
Reception sensitivity -95dbm
Dimensions 13.5cm(length)*6.5cm(width)*2.2cm(height)
Warranty within 1 years
Pressure range 0-14bar/0~203psi



advantage



1. Prevent accidents

2. Real-time monitoring of tire pressure and temperture to prevent puncture

3. Extend tire life

4. Reduces wear on the suspension system

5. Make driving more economical





Sensor(Ordinary internal type sensor)
Plastic parts material Nylon + glass fiber
Shell temperature resistance -50℃~150℃
Antenna sheet material Phosphorus copper nickel plating
Machine weight (excluding valve) 16g±1g
Power supply mode Button Battery
battery model CR2050
battery capacity 345mAh
Working voltage 2.1V-3.6V
working current 8.7mA
Self-test current 2.2mA
Dormant current 0.5uA
Working temperature -40℃-125℃
Transmit frequency 433.92MHZ
Transmit power >-12dBm
Dimensions 5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve)
Warranty Sensors Warranty Within 12 months after delivery day
Pressure range 0~203psi
Type Valve truck tpms sensor



Product attention:



 Tires have natural micro leakage phenomenon. It is a normal phenomenon that pressure of tire decreases over time. Pressure decreasing don't have directly relationship with install this products.



It is a normal phenomenon that pressure is unstable due to thermal expansion during driving. It don't have directly relationship with install this products.



Esteemed customer:



Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.

If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.

Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.

In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.

Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
