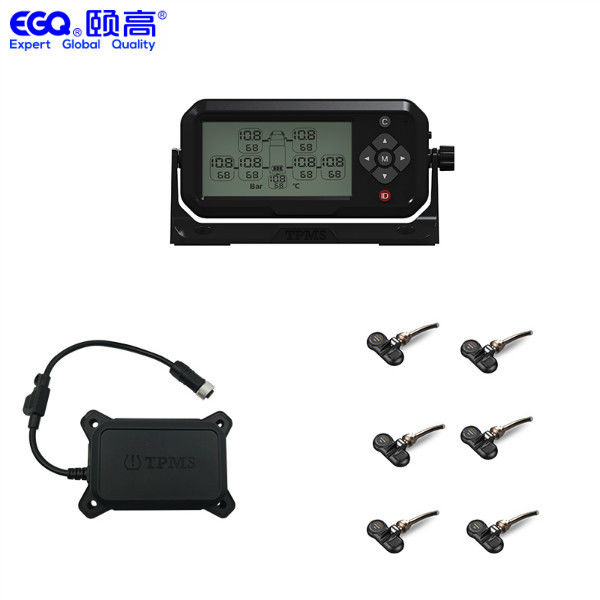

Wireless RV Tire Pressure Monitoring System
Main features:
1. LCD display with USB input charging slot.
2. RF wireless transmission.
3. receiver Battery rechargeable by charging
4. Flexible display place on dashboard freely.
5. High capacity battery for a month use.
6. Display showing 7 tire pressure and tempreature all at a glance.
Product parameters
| Receiver(7 Wheels) |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Built-in rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24Volt, ACC24Volt |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty |
Within 1 years |
| Type |
Digital |
| Sensor(Ordinary internal type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Shell temperature resistance |
-50℃-150℃ |
| Antenna sheet material |
Phosphorus copper nickel plating |
| Machine weight (excluding valve) |
16g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions |
5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty |
12 Months |
System function
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Prevent tire blowout and reduce the risk of accidents;
Reduce vehicle tire damage and extend the service life of tires;
Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;
Maintain the normal braking effect and reduce the occurrence of safety accidents;
Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system;
FAQ
1.Q: Can we get your free samples?
A: Yes,you can.Our samples are only free for the customers who confirm bulk order.But the freight for express is borne by buyer.
2. Q: Can we do printing or label printing on the sensor?
A: Yes,you can.We could offer various printing methods:label printing,screen print,hot stamping,frost,etc.And as to printing color:Color can be made according to PANTONE color number .
3.Q: Can you produce sensor according our design?
A: Yes,we could produce models according to customer’s design.
4. Q: What is the normal lead time?
A: For stock products,the products are be sent within 7days after receiving payment.
5.Q: How do you control the quality?
A: We do leak test for 3times before packing.
6.Q: If any defective sensor,how can you settle it for us?
A: We will 1:1replacement for the defective sensors which cause by ourside.
