Shenzhen EGQ Cloud Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | EGQ |
| Certification: | CE,FCC,ROHS,IATF16949:2016 |
| Model Number: | T2QZ1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | boxs |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000 sets per month |
| Plastic Parts Material: | Nylon + Glass Fiber | Dimensions: | 13.5cm(length)*6.5cm(width)*2.2cm |
|---|---|---|---|
| Interface Voltage: | Vehicle Battery 24V, ACC24V | System Function: | Reduce Vehicle Tire Damage And Extend The Service Life Of Tires |
| Bright Working Current: | 12mA | Warranty: | 12 Months |
| Highlight: | TPMS RV Tire Pressure Monitoring System,RV TPMS,ACC24V TPMS |
||

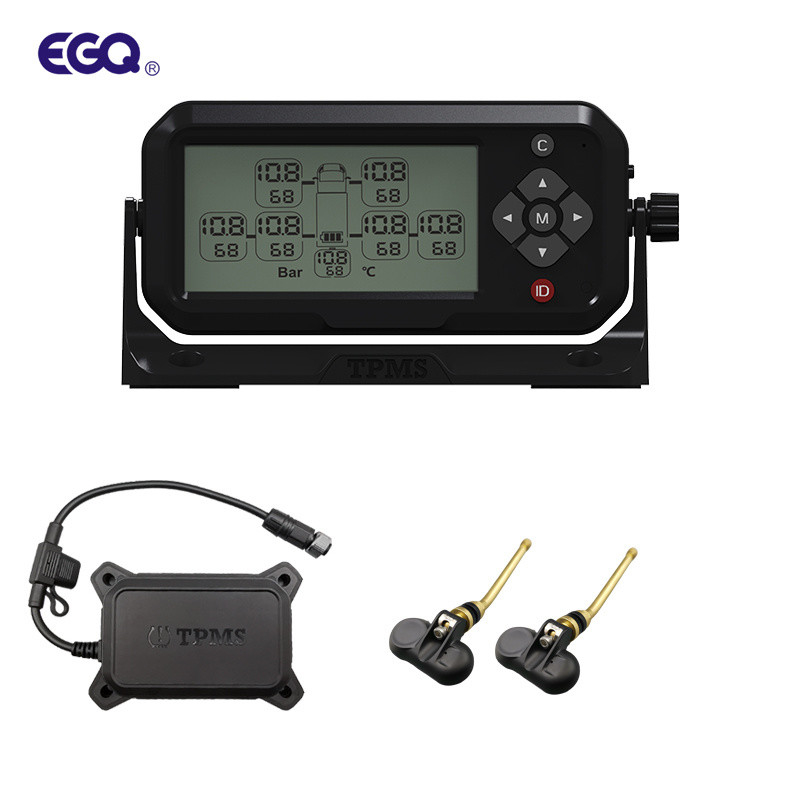

TPMS RV Tire Pressure Monitoring System
Description:
It is built-in and external sensor, convenient and safe, easy to operate, multi-functional, designed for large vehicles, trucks, buses and other vehicles with more than 4 tyres. It can support up to 36 tyres at the same time. The product has 6 sensors.
Product parameters:
Colour: Black
Function: Abnormal tire pressure alarm
Abnormal tire temperature alarm
Air leakage alarm
Reduce tire wear
Fuel economy
Wireless transmission
USB power supply
Product parameters

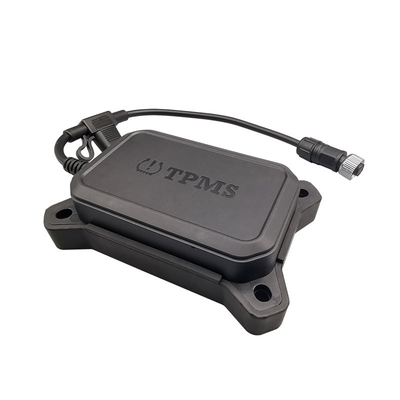

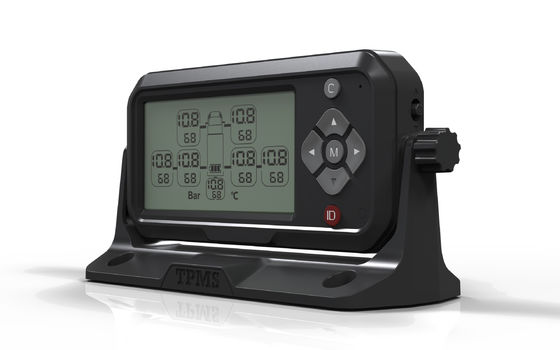

| Receiver(7 Wheels) | |
| Display interface | LCD segment code (7 rounds with the same display) |
| Receiver port | Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) | 230g±5g |
| Abnormal self-recovery | Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature | -30-80℃ |
| Power supply mode | internal rechargeable lithium battery and external power supply |
| Interface voltage | Vehicle battery 24V, ACC24V |
| Built-in battery voltage | 3.5-4.2V |
| Bright working current | 12mA |
| Black working current (for data communication) | 4.5mA |
| Reception sensitivity | -95dbm |
| Dimensions | 13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty | 12 Months |

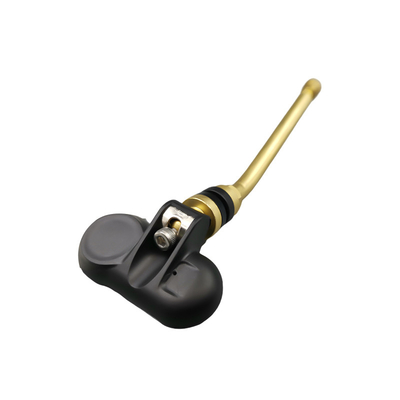

| Sensor(Ordinary internal type sensor) | |
| Plastic parts material | Nylon + glass fiber |
| Shell temperature resistance | -50℃-150℃ |
| Antenna sheet material | Phosphorus copper nickel plating |
| Machine weight (excluding valve) | 16g±1g |
| Power supply mode | Button Battery |
| battery model | CR2050 |
| battery capacity | 345mAh |
| Working voltage | 2.1V-3.6V |
| working temperature | 8.7mA |
| Self-test current | 2.2mA |
| Dormant current | 0.5uA |
| Working temperature | -40℃-125℃ |
| Transmit frequency | 433.92MHZ |
| Transmit power | >-12dBm |
| Dimensions | 5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty | 12 Months |
System function
Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;
Maintain the normal braking effect and reduce the occurrence of safety accidents;
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.
FAQ:
1. Q: Are you a factory or trading company?
A:We are a factory in shenzhen and have many branch offices in our Nation.
2. Q: Can I get some samples?
A: We are pleased to offer you samples.
3. Q: How about your quality control?
A: Our company has gained CE, FCC and RoHS authentication.
4. Q: What is your after-sale service?
A: We offer free spare parts within warranty period.
5. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
6. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size of your order.
