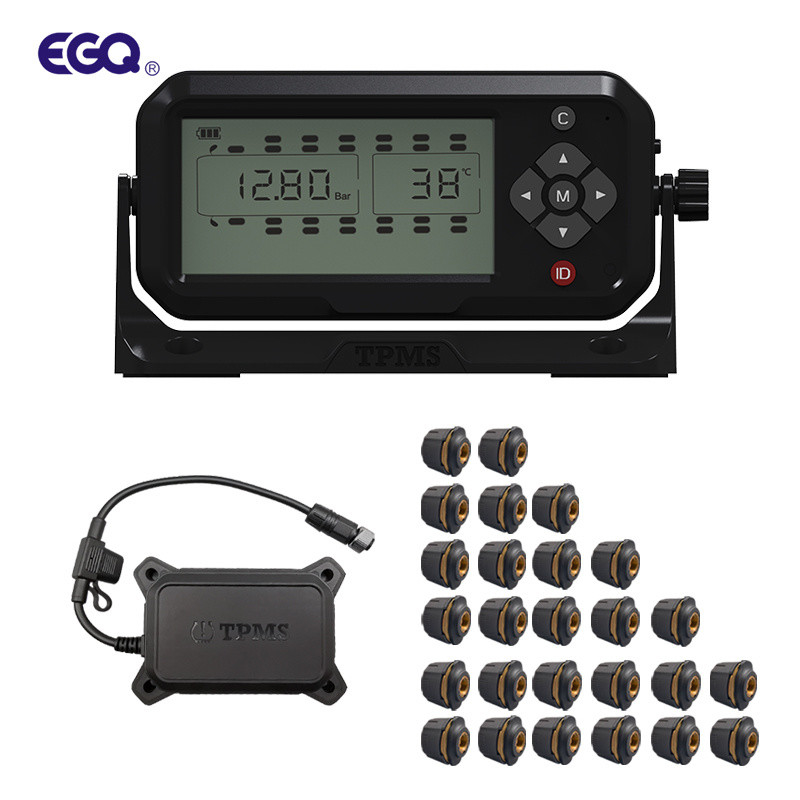

Trailer Truck Tire Pressure Monitoring System
High quality without compromise
The main materials imported from brand suppliers,rich and professional testing equipment work in our Lab,EGQ spare no efforts in quality control and product innovation,aiming to satisfy worldwide customer’s preferences and expectations with products of highest
Product parameters

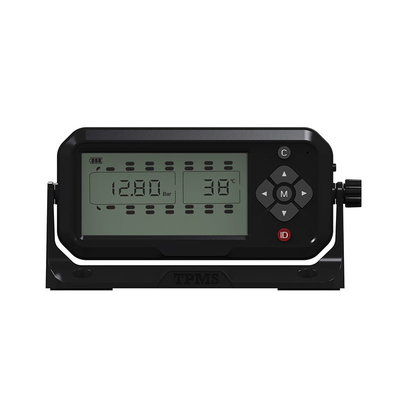

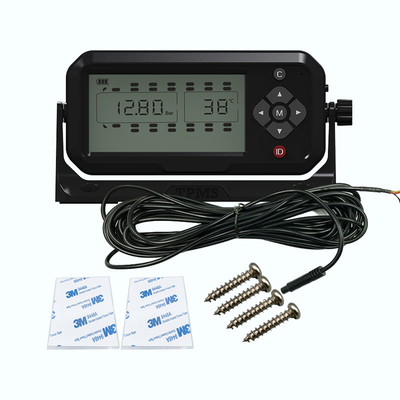

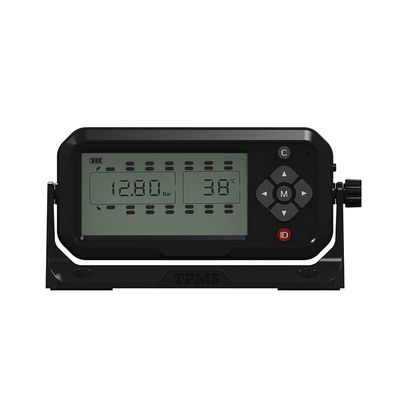

| Receiver |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30-80℃ |
| Power supply mode |
Built-in rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24Volt, ACC24Volt |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |

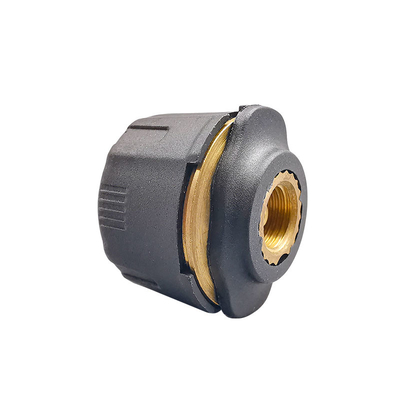

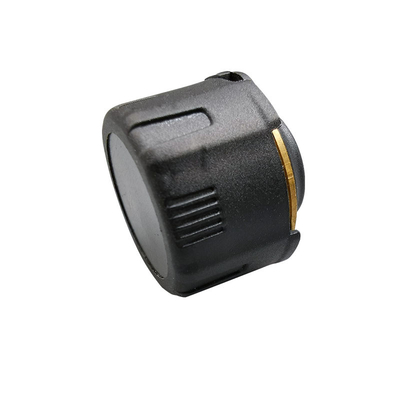

| Sensor(External sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Metal part material |
Aluminum alloy |
| Shell temperature resistance |
-50-150℃ |
| Thread Size |
8V1 internal thread |
| Machine weight (excluding packaging) |
12g±1g |
| Power supply mode |
Button Battery |
| battery model |
CR1632 |
| battery capacity |
135mAh |
| Working voltage |
2.1-3.6V |
| working current |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Sensor working temperature |
-30℃-80℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-20dBm |
| Waterproof grade |
IP67 |
| Dimensions |
Φ2.4cm(diameter)*2cm(height) |
System function
Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system;
Maintain the normal tire pressure and improve the comfort of vehicle ride;
Reduce the pollution of vehicle exhaust emissions to the environment, and create a green and environmental friendly social environment;
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving.It can real-time monitor tire pressure and temperature conditions.
Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving
safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
