Shenzhen EGQ Cloud Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | EGQ |
| Certification: | CE,FCC,ROHS,IATF16949:2016 |
| Model Number: | T8WZ1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | boxs |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000 sets per month |
| Receiver Abnormal Self-recovery: | Toggle Switches(The Switch Is Facing Up, Restart After Disconnecting The External Power Supply.) | Receiver Working Temperature: | -30℃-80℃ |
|---|---|---|---|
| Receiver Power Supply Mode: | Internal Rechargeable Lithium Battery And External Power Supply | Receiver Interface Voltage: | Vehicle Battery 24V, ACC24Volt |
| Receiver Built-in Battery Voltage: | 3.5Volt-4.2Volt | Function: | Reduce Abnormal Wear Of Relevant Parts Such As Vehicle Shock Absorber And Suspension System |
| Highlight: | Truck Tire Pressure Monitoring System,Truck Pressure Monitoring System,12mA TPMS |
||

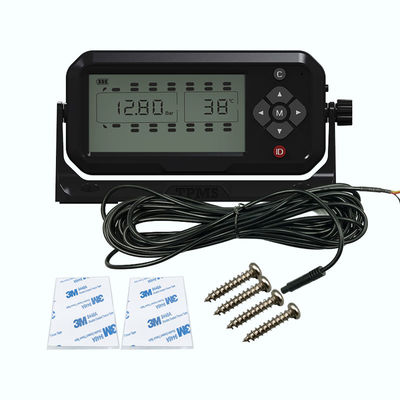

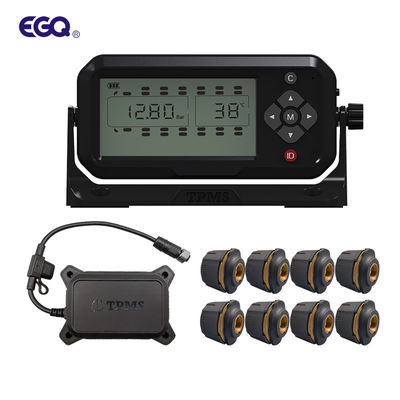

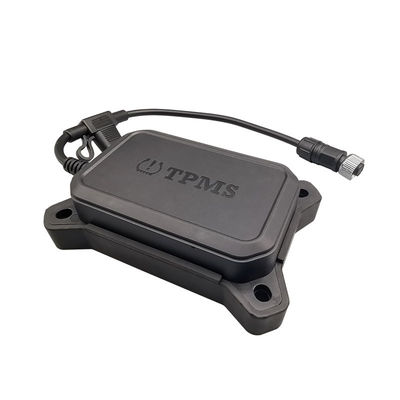

Truck Tire Pressure Monitoring System
Product parameters
| Receiver | |
| Display interface | LCD segment code (7 rounds with the same display) |
| Receiver port | Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) | 230g±5g |
| Abnormal self-recovery | Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature | -30-80℃ |
| Power supply mode | Built-in rechargeable lithium battery and external power supply |
| Interface voltage | Vehicle battery 24Volt, ACC24Volt |
| Built-in battery voltage | 3.5volt-4.2Volt |
| Bright working current | 12mA |
| Black working current (for data communication) | 4.5mA |
| Reception sensitivity | -95dbm |
| Dimensions | 13.5cm(length)*6.5cm(width)*2.2cm(height) |
System function
Reduce vehicle tire damage and extend the service life of tires;
Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;
Maintain the normal braking effect and reduce the occurrence of safety accidents;
Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system
Main features:
1. LCD display with USB input charging slot.
2. RF wireless transmission.
3. receiver Battery rechargeable by charging
4. Flexible display place on dashboard freely.
5. High capacity battery for a month use.
6. Display showing 4tire pressure and tempreature all at a glance.

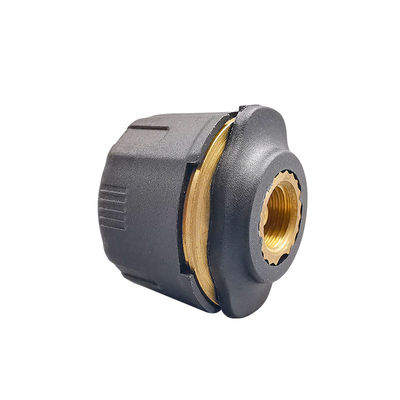

7. Compatible with both rxternal and internal sensor.
8. DIY installation for external sensor
9. Replacement battery for external sensor:CR2050B
10. Long life battery for internal sensor.
11. Visual and audible warning.
12. Convertible pressure and temperature unit.
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving.It can real-time monitor tire pressure and temperature conditions.
If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm
and flash warning icon to remind the driver.
Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
