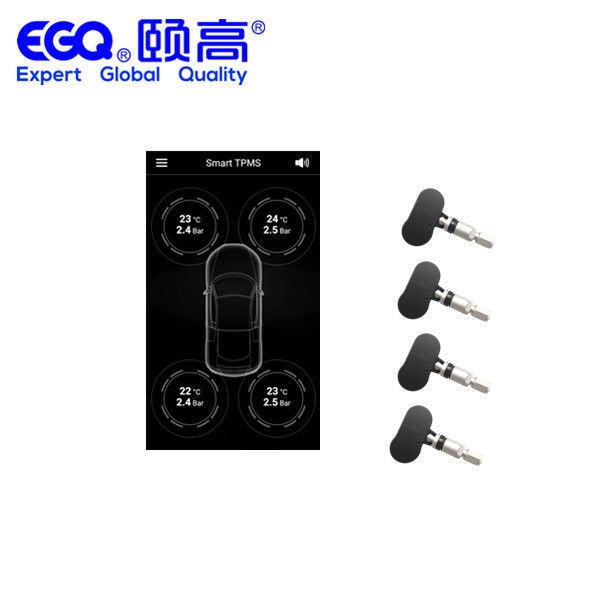

2.4Ghz Car Tire Pressure Monitoring System
Universal internal Bluetooth sensors Tire pressure monitoring system for Passenger car 2.4Ghz
-Smart Terminal (APP):
By using device with Bluetooth 4.0 (iPod5,iPhone4S/5 or iPad3/mini), car status can be monitor in real-time. View each tire pressure and temperature easily.
-APP Feature:
Fast Leakage Alert: Pressure leakage above 5Kpa within 5 seconds, Fast Leakage Alert’s ON and “Leakage” icon appears.
High Pressure Alert: Pressure value’s even higher than highest configured pressure limit, “High Pressure Alert’s ON.
Low Pressure Alert: Pressure value’s even lower than lowest configured pressure limit, “Low Pressure Alert’s ON.
High Temperature Alert: Temperature value’s even higher than Highest configured temperature limit, “High temperature Alert’s ON.
No Signal Alert: No signal accepted for a while, No Signal Alert’s ON.
Low Battery Alert: Battery voltage’s lower than configured value, Low Battery Alert’s ON.
sensor parameters
| Sensor dimensions |
7.1cm*5.3cm |
| Sensor plastic part material |
Nylon / glass fiber |
| Temperature resistance of the shell |
-50℃-150℃ |
| The silicone heat-resistant |
-50℃-200℃ |
| Antenna material |
Phosphor copper nickel platin |
| Metal material of valve |
Aluminium (oxidation treatment) |
Function
High temperature warning
Low power warning
No signal warning
Hot sale bluetooth external tpms tire pressure monitoring system
Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics' abnormal. For your safety, please read manual before using, thank you!
WARNING
1: Support cellphone with Bluetooth 4.0 or above. Do NOT support Cellphone with Bluetooth lower than 4.0.(Due to the different hardware performance of android phone manufacturers, data transmission may be delayed, which is a normal phenomenon)
2: Product displays by cellphone. During driving, please be careful when viewing tire pressure and temperature in cellphone.
3: If tire pressure accelerates down or up continuously,please stop car and check if there's any problem with the tire.
4: This product can read tire pressure and temperature, but it cannot avoid sudden accident caused by tire. It's important to use tire with high quality.
5: Slightly tire leakage makes tire pressure decreases over time is normal. It has nothing to do with this product installation.
FAQ
We have a professional technical team to provide 24H online service.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.OR T/T, L/C, D/A and western union.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample of extra fee but do not pay the cost of freight.
Q: What is your shipping way?
A: We will help you to choose the best shipping way according to your detail requirements,By sea,By air or By express,etc.
Q. How do you control the quality?
A: We will make samples before mass production, and after sample approved, we will begin mass production.Doing 100% inspection during production; then do random inspection.before packing; taking pictures after packing.
