Passenger Car Tire Pressure Monitoring System
Universal external sensor Bluetooth Tire pressure monitoring system for Passenger car
Function
Sensor and receiver corresponding wheel position number
Alarm function
leakage warning
Hot sale bluetooth external tpms tire pressure monitoring system

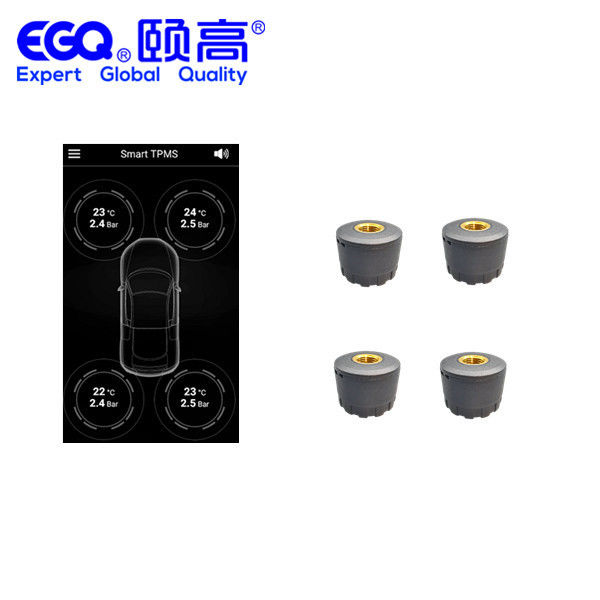

Once BLE tire sensor installed in wheel, tire pressure and temperature can be displayed in cellphone with APP. During travel, tire pressure and temperature displayed in real time and send alert when statistics' abnormal. For your safety, please read manual before using, thank you!
WARNING
1: Support cellphone with Bluetooth 4.0 or above. Do NOT support Cellphone with Bluetooth lower than 4.0.(Due to the different hardware performance of android phone manufacturers, data transmission may be delayed, which is a normal phenomenon)
2: Product displays by cellphone. During driving, please be careful when viewing tire pressure and temperature in cellphone.
3: If tire pressure accelerates down or up continuously,please stop car and check if there's any problem with the tire.
4: This product can read tire pressure and temperature, but it cannot avoid sudden accident caused by tire. It's important to use tire with high quality.
5: Slightly tire leakage makes tire pressure decreases over time is normal. It has nothing to do with this product installation.
sensor parameters
| Sensor SIZE |
2.1cm(width)*1.7cm(height) |
| Materials of plastic part |
Nylon/Fiberglass |
| Case working temperature |
-50℃-150℃ |
| Valve crew size |
8V1 outer screw |
| Material of valve screw |
phosphor copper |
| baterry replacement tool |
4.2cm(width)*0.6cm(height) |
EGQ BLE 4.0 TPMS design based on a new Bluetooth technology—— Bluetooth 4.0(Bluetooth Low Energy) which has low product cost, Low power consumption and high stability. By installing sensor on the tire, data will be sent to Bluetooth 4.0 device (Android, iPhone and iPad), APP can display real time data like: Tire Pressure, Tire Temperature and send alert when either is abnormal.
-APP Feature:
Fast Leakage Alert: Pressure leakage above 5Kpa within 5 seconds, Fast Leakage Alert’s ON and “Leakage” icon appears.
High Pressure Alert: Pressure value’s even higher than highest configured pressure limit, “High Pressure Alert’s ON.
Low Pressure Alert: Pressure value’s even lower than lowest configured pressure limit, “Low Pressure Alert’s ON.
High Temperature Alert: Temperature value’s even higher than Highest configured temperature limit, “High temperature Alert’s ON.
No Signal Alert: No signal accepted for a while, No Signal Alert’s ON.
Low Battery Alert: Battery voltage’s lower than configured value, Low Battery Alert’s ON.
FAQ
What's your MOQ? Can you support sample order?
Yes, we can support the sample order, and our MOQ is: 50sets
How do you control the quality?
We will make samples before mass production, and after sample approved, we will begin mass production.Doing 100% inspection during production; then do random inspection.before packing; taking pictures after packing.
If any quality problem, how can you settle it for us?
Any problem, our company has Professional technicians will be deal with it timely.
