External Sensor Motorcycle TPMS
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: M5W2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Max Pressure: 120 Psi Product Name: Motorcycle TPMS
Frequency: 433.92mhz Sensor Working Temperature: -30℃-80℃
Battery Capacity: 135mAh Battery Temperature Resistance: -30℃-80℃
Highlight:

external sensor Motorcycle TPMS

,

external sensor TPMS

,

135mAh external sensor TPMS

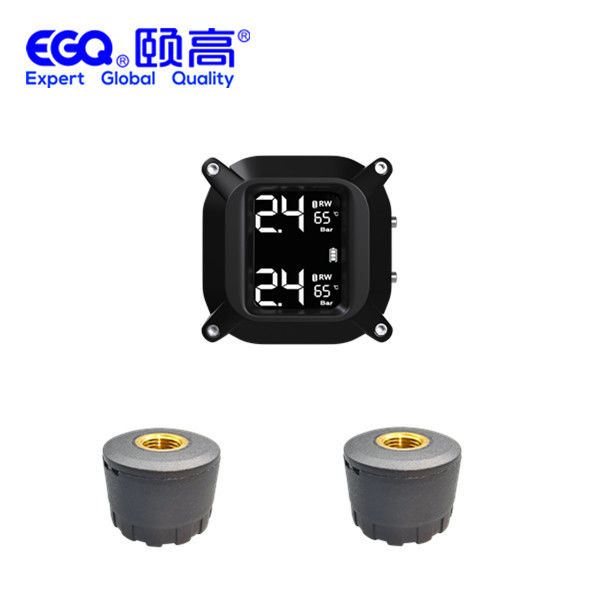

External Sensor Motorcycle TPMS



Universal external sensor Tire pressure monitoring system for bike 433.92mhz



sensor parameters



Waterproof rubber ring specifications diameter 1.6cm, wire diameter 1.0mm
Waterproof rubber ring material rubber
Sensor weight 9.6g±1g
Sensor working temperature -30℃-80℃
Battery model CR1632
Battery capacity 135mAh
Working voltage 2.1V-3.6V
Emitting current 8.7mA
Self-test current 2.5mA
Sleep current 0.2uA
Battery temperature resistance -30℃-80℃
Transmit power (bare test) -35dbm



Customization



1. Could design your own logo on the product



2. Could design the special color box, blister card and double blister as your requirement



3. Offering you the high-quality product with attractive and competitive price!



Products Description



1. Fit for 4-tyre vehicle of DC 12V



2. Tyre pressure sensor range : 0-8 Bar / 0-120.Psi



3. Tyre temperature high limit :125.C



4. switched to another vehicle easily



5. Flexible display placement on dashboard



6. Compact-size wireless display



7. Intelligent sleeping mode for power saving



8. use chips Freescale 87E, Japanese Maxell battery.







Receive host parameters

Type Tire Pressure Monitoring System ( motorcycle TPMS)
Circuit board size 4.3cm*4.3cm
PCB thickness 1.0mm
PCB copper thickness 1OZ
Whole board weight (without battery, and shell) 17g±1g
Working temperature -30-80℃
Power interface no distinction between positive and negative magnetic head
Working voltage 3.5V-4.2V
Bright screen standby current 5.3mA
Highlight mode current 9.1mA
Sleep current 0.11mA
Receive sensitivity (open loop test) -90dbm





Products Advantages



* All the parts can supply original package



* OE quality



* Accept trial order



* Fast delivery



* Factory price,let you have enough profit



* Passionate team



* Excellent pre-sales and after-sales services.







FAQ



Q1. Are you the factory or distributor?



We are factory.



Q2. What products can EGQ supply?



Our factory specially and professional in R&D and produce tire pressure monitoring products, include programmable tpms sensors,tpms diagnostic tools, car TPMS and truck tpms.



Q3. How about the after-sale service?



If you got any problems with the products, please take some photos of broken product to us, we will analyze and reply you in several days.



Q4. When do you ship my order?



Normally 3-7days after receiving your payment, but it also based on order qty and production schedule.



Q5. Do you test all your goods before delivery?



Yes, we 100% test our products before delivery.



Q6. Can you produce according to the samples?



Yes, we can produce by your samples or drawings.



Q7. What is your terms of delivery?



EXW, FOB, CFR, CIF,etc
