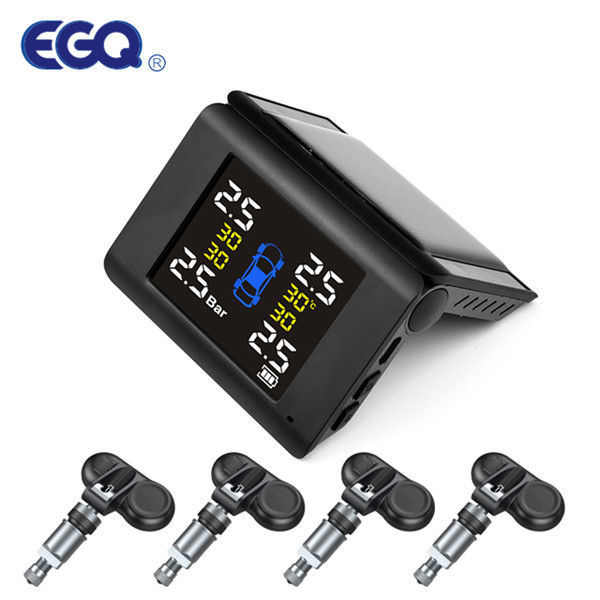

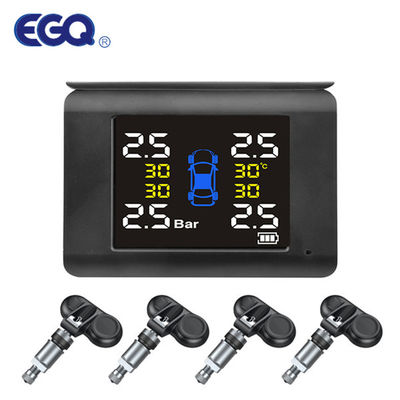

Digital Solar Tire Pressure Monitoring System

Digital Solar Tire Pressure Monitoring System

  • Digital Solar Tire Pressure Monitoring System
  • Digital Solar Tire Pressure Monitoring System
  • Digital Solar Tire Pressure Monitoring System
  • Digital Solar Tire Pressure Monitoring System
  • Digital Solar Tire Pressure Monitoring System
  • Digital Solar Tire Pressure Monitoring System
Digital Solar Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: S6N
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Max Pressure: 120 Psi Product Name: Solar Tire Pressure Monitoring System (TPMS)
USB Interface Voltage: 5.0V Battery Operating Voltage: 3.3V-4.2V
Working Current Of High Bright Screen: 10mA Working Current Of Medium Bright Screen: 6.8mA
Highlight:

Digital Solar Tire Pressure Monitoring System

,

120 Psi Solar Tire Pressure Monitoring System

,

5.0V Tire Pressure Monitoring System

Digital Solar Tire Pressure Monitoring System



2.55 inch Universal internal sensor solar Tire pressure monitoring system for passenger cars 433.92mhz

internal sensor parameters




Dimensions

 7.1cm*5.3cm

Sensor plastic material

 nylon/glass fiber

Shell temperature resistance

 -50-150

Potting material

 silicone 9210

Silicone volume resistivity

 1.0×1013Ω•cm

Silicone temperature resistance

 -50-200


Specifications

The solar screen VA touch screen is more beautiful and has a wider viewing angle. Because the screen needs to add an additional driver

The shell is made of new materials to prevent secondary pollution from threatening human safety, and ABS+PC prevents deformation.

IP67 highly waterproof (soak it for 30 minutes after being immersed in a meter of water for normal use)

Pre-explosion-proof tires, the tires will continue to have low pressure or thermal expansion and contraction after a long time of driving. This is the main cause of tire explosion. Using a tire pressure monitoring system can further reduce tire wear and reduce fuel consumption.


Receive host parameters



Dimensions 6.95cm (wide) * 4.27cm (high)
Thickness of the PCB 1.0mm
PCB copper thick 1OZ
Weight of the whole board (excluding shell) 21g±1g
MICRO USB beyond the edge of the board 1mm
Working temperature -30-80℃
Power interface micro usb
USB interface voltage 5.0V
Battery operating voltage 3.3V-4.2V
Working current of high bright screen 10mA
Working current of medium bright screen 6.8mA
Working current of low bright screen 5mA
Receiving sensitivity -90dbm
Standby current 120uA
































FAQ

Q. How long is the lead time for sending sample ? Does the sample fee can be returned ?
A: Usually it will takes 2~5 days working days for sample preparing & sending.
If the order reach or exceed behind MOQ quantity, sample fee will be refunded.

Q. About the sample, what’s the cost of transportation? How long can I expect to get the sample ?
A: The freight depends on weight, packing size and your country or province region,etc.
The samples will be sent via international express such as DHL, UPS,TNT,FEDEX and would be arrived within 3~5 days.

Q. Can we have our logo or company name to be printed on your products or package?
A: Sure. If the quantity reach MOQ, your logo could be printed on your products by hot stamping,printing, embossing, UV coating,silk-screen printing or sticker.
