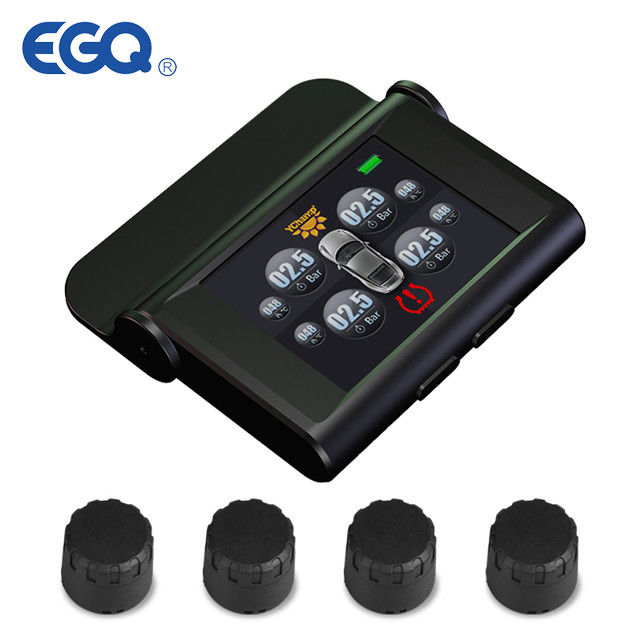

External Sensor Solar Tire Pressure Monitoring System

External Sensor Solar Tire Pressure Monitoring System

  • External Sensor Solar Tire Pressure Monitoring System
  • External Sensor Solar Tire Pressure Monitoring System
  • External Sensor Solar Tire Pressure Monitoring System
  • External Sensor Solar Tire Pressure Monitoring System
External Sensor Solar Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: S2W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Name: Solar Energy Tpms / External Sensor Solar TPMS Max Pressure: 120 Psi
Product Name: Solar Tire Pressure Monitoring System (TPMS) Circuit Board Size: 4.3cm (width) * 6.7cm (height)
PCB Thickness: 1.0mm PCB Copper Thickness: 1OZ
Highlight:

External Sensor Solar TPMS

,

solar energy tpms

,

120Psi Tire Pressure Monitoring System

External Sensor Solar Tire Pressure Monitoring System



2.21 inch Universal external solar Tire pressure monitoring system for passenger cars 433.92mhz



Specifications



4 rounds of simultaneous display, you can see all the data more clearly.



Dual charging mode, solar energy plus USB charging.



Japanese imported batteries make the sensor use longer



Intelligent light sensitivity, high brightness when the solar energy is sufficient, medium brightness in the darker conditions, and manual adjustment to the lowest brightness.



parameter



Sensor size: 2.1cm (width)*1.7cm (height)

Sensor plastic part material: nylon/glass fiber

Shell temperature resistance: -50℃-150℃

Valve thread specifications: 8V1 external thread

Valve thread material: phosphor copper

Battery replacement tool size: 4.2cm (width) * 0.6cm (height)

Battery replacement tool material: ABS

Anti-theft nut material: brass nickel plated

Anti-theft nut weight (single): 0.7g



Receive host parameters



Circuit board size 4.3cm (width) * 6.7cm (height)
PCB thickness 1.0mm
PCB copper thickness 1OZ
Whole board weight (without shell) 18g±1g
MICRO USB beyond the edge of the board 1mm
Working temperature -20-70℃
Power interface micro usb
Battery working voltage 3.0V-4.2V
Charging voltage 4.5-5.5V
Bright screen standby current 40mA
Black screen standby current 4.5mA
Receiving sensitivity -90dbm
Sleep current

100uA





FAQ

Q: Why Choose EGQ TPMS?

A: Professional tool worth having, UNIVERSAL FIT CAR TRUCK Protect your vehicle, Extend useful life of tyre.Save your FUEL cost, Enhance your driving ability ,The key reason should be repeated three times.

Keep you and your family safer,Keep you and your family safer,Keep you and your family safer.



Q: Are you manufacturer or trader?

A: We are a manufacturer specialized in TPMS for 7 years.



Q: What's your location? Which is the nearest port for EGQ China?

A: EGQ China is located in guangming,shenzhen city, where is near from guangzhou and shenz port.
