433.92MHZ Tire Pressure Monitoring System

433.92MHZ Tire Pressure Monitoring System

  • 433.92MHZ Tire Pressure Monitoring System
433.92MHZ Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: B8OZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Features: * Provide A Power Line To Truck VCC Display Interface: LCD Segment Code (7 Rounds With The Same Display)
Max Pressure: 203psi Transmit Frequency: 433.92MHZ
Sensor Working Temperature: -30-80℃ Name: 433.92MHZ TPMS
Highlight:

433.92MHZ Tire Pressure Monitoring System

,

433.92MHZ TPMS

,

433.92MHZ 203psi TPMS

433.92MHZ Tire Pressure Monitoring System

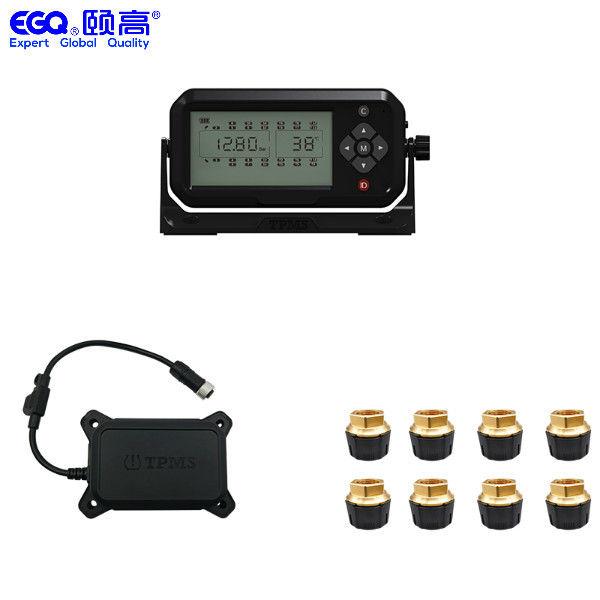

12V1 433.92MHZ OTR sensors eight tires Truck TPMS For Engineering vehicle include repeater


Features

It requires professional installation tire removal tool

Provide a power line to truck VCC

Pressure range 0-232PSI

Pressure and temperature displayed for each tyre

Accurate to under 3%

Monitor displays pressure loss warnings visually and with an audible alarm

Tyre pressure levels can be individually set for each tyre

Dual pressure settings available for each tyre (on road/off road etc.)

Temperature alarms if tire temperature rises above 65C

Daily pressure reset

Trailer disconnect function

Sensors have replaceable batteries which are readily available

Minimum one year battery life

Product parameters



OTR sensors
DimensionsΦ2.4cm(diameter)*2cm( height )
Plastic parts materialNylon + glass fiber
Metal part materialcopper
Shell temperature resistance-50℃-150℃
Thread Size12V1 internal thread(customizable)
Machine weight (excluding packaging)23±1g
Power supply modeButton Battery
Battery modelCR1632
Battery capacity135mAh
Working voltage2.1V-3.6V
Transmit current8.7mA
Self-test current2.2mA
Sleep current0.5uA
Sensor working temperature-30℃-80℃
Transmit frequency433.92MHZ
Transmit power-10dbm


FAQ

Q1. Are you manufactory or trade company ?
A:We are the manufactory specialized in TPMS(Tire pressure Monitoring system)for many years already, in SHENZHEN, Guangdong province, China. You are welcome to visit our factory at any time.

Q2. Why your price cheaper than others? And what’s minimum quantity of an order of your cargos?
A: We are the manufacturer with many years of experience,
and we sell our products with EX factory price to customer directly .

Q3. How long is the lead time for sending sample ? Does the sample fee can be returned ?
A: Usually it will takes 2~5 days working days for proofing preparing & sending .
If the order reach or exceed behind MOQ quantity, proofing fee refunded.




Q4. Can we have our logo or company name to be printed on your products or package?
A: Sure. If the quantity reach MOQ, your logo could be printed on your products by hot stamping,printing, embossing, UV coating,silk-screen printing or sticker.
