Internal Trailer Tire Monitoring System
Universal internal binding type seven tire Truck TPMS For Trailer Truck iclude repeater
Customization
1. Could design your own logo on the product
2. Could design the special color box, blister card and double blister as your requirement
3. Offering you the high-quality product with attractive and competitive price!
Products Description
1. Fit for 4-tyre vehicle of DC 12V
2. Tyre pressure sensor range : 0-14 Bar / 0-203 Psi
3. Tyre temperature high limit :125.C
4. switched to another vehicle easily
5. Flexible display placement on dashboard
6. Compact-size wireless display
7. Intelligent sleeping mode for power saving
8. use chips Freescale 87E, Japanese Maxell battery.
Product parameters

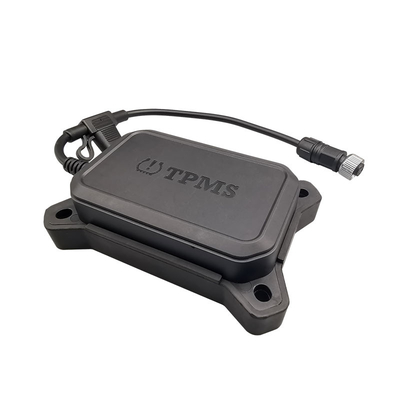

| Receiver(7 wheels) |
|

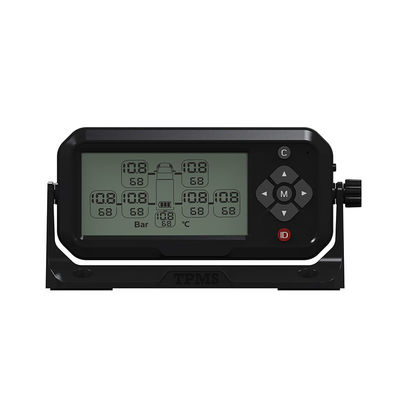

| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output(receiver) |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Pressure range |
0bar~14bar/0psi~203psi(display) |
| type |
internal binding type sensor |

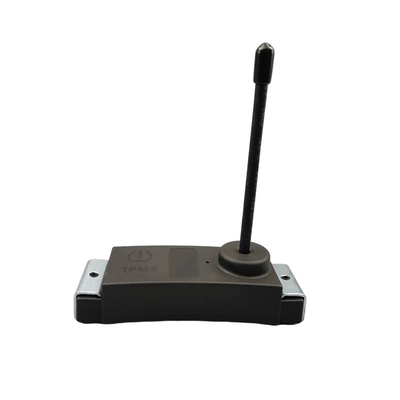

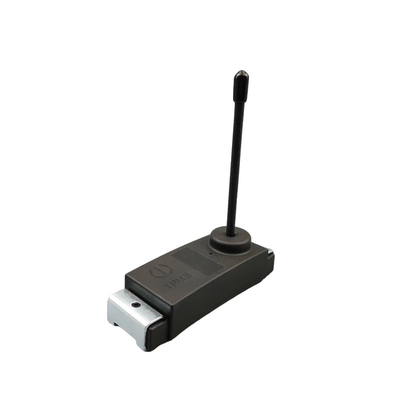

| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30g±1g |
| Shell temperature resistance |
-50℃-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| battery capacity |
345mAh |
| Working voltage |
2.1V-3.6V |
| Working temperature |
-40℃-125℃ |
| working temperature |
8.7mA |
| Self-test current |
2.2mA |
| Dormant current |
0.5uA |
| Working temperature |
-40℃-125℃ |
| Transmit frequency |
433.92MHZ |
| Transmit power |
>-12dBm |
| Dimensions : |
7.3cm(length)*2.73cm(width)*2.2cm(height)(excluding antenna) |

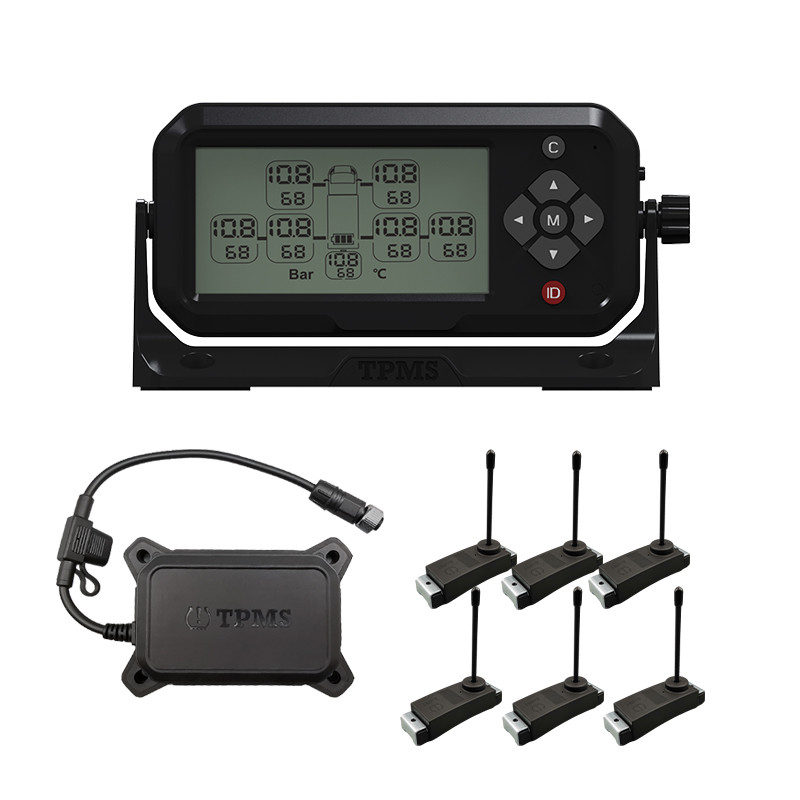

component of product
Alarm function
leakage warning
High pressure warning
Low pressure warning
High temperature warning
Low power warning
No signal warning
Parameter Setting
Tire quantity selection setting
Pressure unit setting
Temperature unit setting
Pressure threshold setting
High temperature threshold setting
Product attention
1 Operation is not suggested during driving.
2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately.
Drivers need to check and repair the tire immediately, in order to avoid risk of accident due to tire problem.
FAQ
Q1: What is your product and technique?
A: We produce TPMS products and measure tire pressure, temperature, acceleration through TPMS products show you.
Q2: What is your product apply fields?
A: Our productsare applied to Automotive electronics industry.
Q3: How does purchase your existing product or customized my product?
A-1: Existing product: Please go to choose your favorite product and memorize product code, determine product request (e.g.: color, lids / top, etc.) and order quantity, together with your consignee address, phone, name and port of discharge etc.
A-2: Customized your product: Please mailing your existing sample to us. If you have own design drawing (Include material name, component weight, size, and configuration etc.details),
A-3: Once receive your any information or sample, we will send best price and order process to you within 24 hour and continuously follow-up services for you, answer your any problem, until your receive the goods.
Q4: Are the product dependable?
A: Yes, we are dealing with Automotive electronics industry since 2013. We are attention to each client request and feedback; we have established long term cooperation with them. All productsare top-quality and quality guaranteed.
