Wireless 6 Tire Pressure Monitoring System
Universal internal binding type Four tire Truck TPMS For Trailer Truck iclude repeater
Customization
1. Could design your own logo on the product
2. Could design the special color box, blister card and double blister as your requirement
3. Offering you the high-quality product with attractive and competitive price!
Products Description
1. Fit for 2-26 tyre vehicle of DC 12V/24V
2. Tyre pressure sensor range : 0-14 Bar / 0-203 Psi
3. Tyre temperature high limit :125°C
4. switched to another vehicle easily
5. Flexible display placement on dashboard
6. Compact-size wireless display
7. Intelligent sleeping mode for power saving
8. use chips Freescale 87E, Japanese Maxell battery.
Product parameters

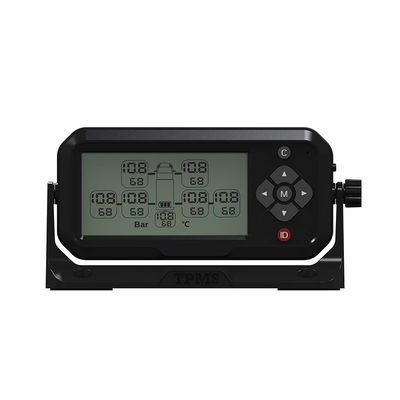

| Receiver(7 wheels) |
|
| Display interface |
LCD segment code (7 rounds with the same display) |
| Receiver port |
Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) |
230g±5g |
| Abnormal self-recovery |
Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature |
-30℃-80℃ |
| Power supply mode |
Internal rechargeable lithium battery and external power supply |
| Interface voltage |
Vehicle battery 24V, ACC24V |
| Built-in battery voltage |
3.5V-4.2V |
| Bright working current |
12mA |
| Black working current (for data communication) |
4.5mA |
| Reception sensitivity |
-95dbm |
| Dimensions |
13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Pressure range |
0bar~14bar/0psi~203psi |
| type |
internal binding sensor |

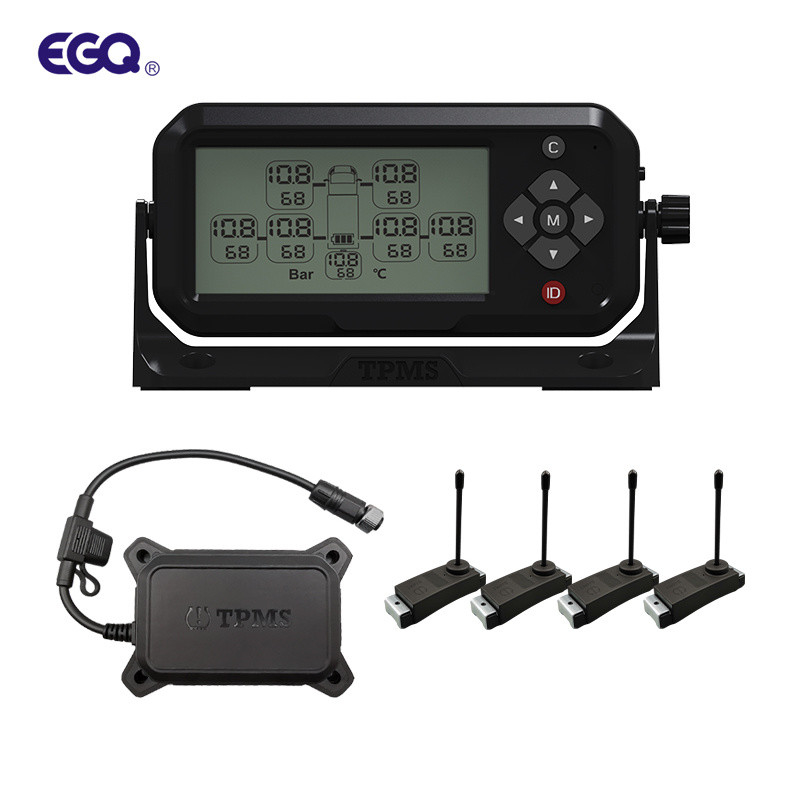

component of product
Alarm function
leakage warning
High pressure warning
Low pressure warning
High temperature warning
Low power warning
No signal warning
Product attention

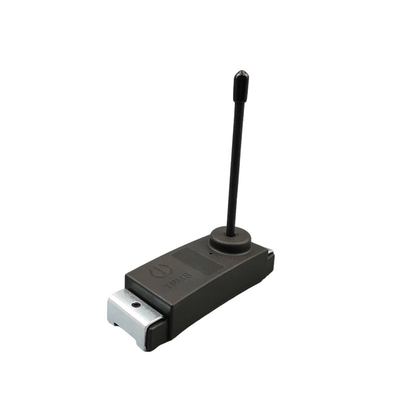

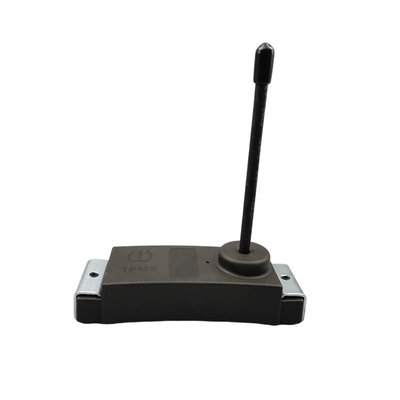

| Sensor (internal binding type sensor) |
|
| Plastic parts material |
Nylon + glass fiber |
| Machine weight (excluding bind belt) |
30g±1g |
| Shell temperature resistance |
-50℃-150℃ |
| bind belt material |
304 stainless steel |
| Power supply mode |
Button Battery |
| battery model |
CR2050 |
| |
|
1 Operation is not suggested during driving.
2 Sensor monitors pressure and temperature of tire and signal to receiver, receiver reports pressure and temperature by number and voice. If there is any abnormal pressure or temperature, flashing warning icon and voice prompt will notice driver immediately.
Drivers need to check and repair the tire immediately, in order to avoid risk of accident due to tire problem.
FAQ
Q1. What is the warranty for your product?
A1: 1 years' warranty.
If any quality problems on your side occured in this period, please contact us.
Q2. Our voltage is 220v, can this be used in my country?
A2: Sure, we will provide the power supply that can work under 100-240v.
Q3. Can we costomize the size, color, logo and package of the product?
A3: Yes, all of these can be cusomized according to your needs.
Q4. How about the delivery time?
A4: Sample order: 7-10 working days after paid for customized products.
Batch order: 20-25 working days as per order quantity after paid.
20ft-40ft containers: 20-35 working days after paid.
Q5. Can you provide free sample or not?
A5: According to our factory's policy, customer will pay for sample cost and shipping cost. However, for building up a bright future of our business, sample cost can be returned after you place a batch order over 500pcs. Hope you will enjoy cooperating with us.
