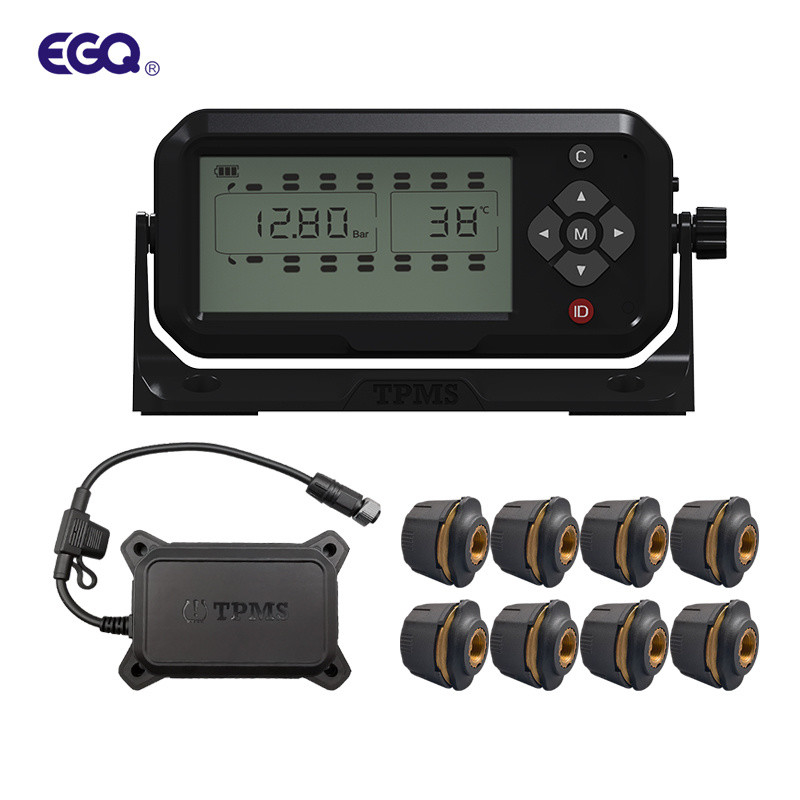

Truck Tire Pressure Monitoring System
Product Details:
Place of Origin: China
Brand Name: EGQ
Certification: CE,FCC,ROHS,IATF16949:2016
Model Number: T8WZ1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: boxs
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 10000 sets per month
Contact Now
Detailed Product Description
Receiver Abnormal Self-recovery: Toggle Switches(The Switch Is Facing Up, Restart After Disconnecting The External Power Supply.) Receiver Working Temperature: -30℃-80℃
Receiver Power Supply Mode: Internal Rechargeable Lithium Battery And External Power Supply Receiver Interface Voltage: Vehicle Battery 24V, ACC24Volt
Receiver Built-in Battery Voltage: 3.5Volt-4.2Volt Function: Reduce Abnormal Wear Of Relevant Parts Such As Vehicle Shock Absorber And Suspension System
Highlight:

Truck Tire Pressure Monitoring System

,

Truck Pressure Monitoring System

,

12mA TPMS

Truck Tire Pressure Monitoring System

Product parameters


Receiver
Display interfaceLCD segment code (7 rounds with the same display)
Receiver portVehicle battery, ACC input and RS232 output
Machine weight (excluding packaging)230g±5g
Abnormal self-recoveryToggle Switches(The switch is facing up, restart after disconnecting the external power supply.)
Working temperature-30-80℃
Power supply modeBuilt-in rechargeable lithium battery and external power supply
Interface voltageVehicle battery 24Volt, ACC24Volt
Built-in battery voltage3.5volt-4.2Volt
Bright working current12mA
Black working current (for data communication)4.5mA
Reception sensitivity-95dbm
Dimensions13.5cm(length)*6.5cm(width)*2.2cm(height)


System function

Reduce vehicle tire damage and extend the service life of tires;

Reduce fuel consumption of vehicles, reduce the cost of use of vehicles;

Maintain the normal braking effect and reduce the occurrence of safety accidents;

Reduce abnormal wear of relevant parts such as vehicle shock absorber and suspension system

Main features:

1. LCD display with USB input charging slot.

2. RF wireless transmission.

3. receiver Battery rechargeable by charging

4. Flexible display place on dashboard freely.

5. High capacity battery for a month use.

6. Display showing 4tire pressure and tempreature all at a glance.

7. Compatible with both rxternal and internal sensor.

8. DIY installation for external sensor

9. Replacement battery for external sensor:CR2050B

10. Long life battery for internal sensor.

11. Visual and audible warning.

12. Convertible pressure and temperature unit.

Esteemed customer:

Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more
safety when driving.It can real-time monitor tire pressure and temperature conditions.

If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm
and flash warning icon to remind the driver.
Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.

FAQ
Q1: Could I print my own brand/ logo on the goods?
R: Sure, of course, OEM printing logo is welcomed based on MOQ.
Please show Brand Licensing and provide original logo file.

Q2. What’s the MOQ if I want to print my own brand/logo?
R: The MOQ will be decided by your customized packaging.

Q3: Can I make sample based on my demand?
R: Certainly, we have professional engineer to make a proof before order OEM mass product.

Q4: is there stock goods? What’s the MOQ?
R: Yes, we have approx 1,000 square meters as warehouse stock to ensure timely supply. The MOQ is 10 set.

Q5: How can I pay for order?
We accept Bank Transfer,Paypal, Western Union or Escrow for payment.
30% deposit is allowed for mass production.
