Shenzhen EGQ Cloud Technology Co., Ltd.

|
| Place of Origin: | China |
| Brand Name: | EGQ |
| Certification: | CE,FCC,ROHS,IATF16949:2016 |
| Model Number: | B26QZ1 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | boxs |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10000 sets per month |
| Display Interface: | LCD Segment Code (26 Wheels With The Same Display) For Receiver | Receiver Port: | Vehicle Battery, ACC Input And RS232 Output |
|---|---|---|---|
| Pressure Range: | 0bar-14bar/0psi~203psi | Working Frequency: | 433.92 MHz |
| Type: | Tpms Valve Type Sensors | Transmit Power: | >-12dBm |
| High Light: | TPMS Truck Tire Pressure Monitoring System,26 Tire TPMS,Valve Type TPMS |
||

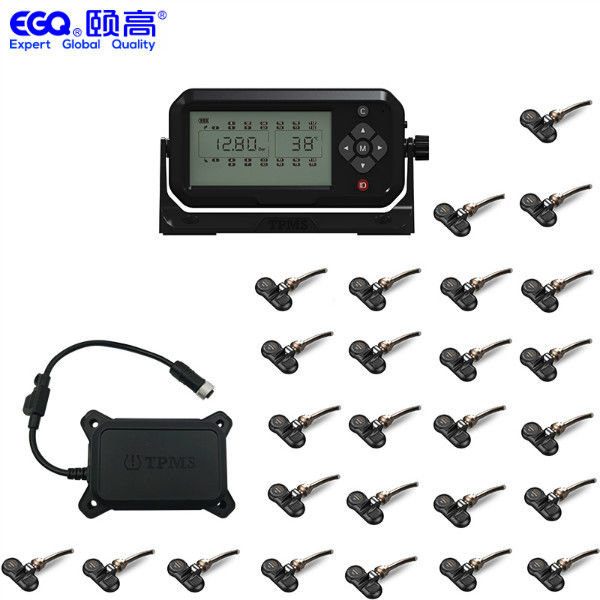

Valve Type 26 Tire TPMS Truck Tire Pressure Monitoring System
Product parameters
| Receiver(26 wheels) | |
| Display interface | LCD segment code (26 wheels with the same display) for receiver |
| Receiver port | Vehicle battery, ACC input and RS232 output |
| Machine weight (excluding packaging) | 230g±5g |
| Abnormal self-recovery | Toggle Switches(The switch is facing up, restart after disconnecting the external power supply.) |
| Working temperature | -30℃~80℃ |
| Power supply mode | Internal rechargeable lithium battery and external power supply |
| Interface voltage | Vehicle battery 24V, ACC24V |
| Internal battery voltage | 3.5V-4.2V |
| Bright working current | 12mA |
| Black working current (for data communication) | 4.5mA |
| Reception sensitivity | -95dbm |
| Dimensions | 13.5cm(length)*6.5cm(width)*2.2cm(height) |
| Warranty | within 1 years |
| Pressure range | 0bar-14bar/0psi~203psi |
| Sensor(Ordinary internal type sensor) | |
| Plastic parts material | Nylon + glass fiber |
| Shell temperature resistance | -50℃~150℃ |
| Antenna sheet material | Phosphorus copper nickel plating |
| Machine weight (excluding valve) | 16g±1g |
| Power supply mode | Button Battery |
| battery model | CR2050 |
| battery capacity | 345mAh |
| Working voltage | 2.1V-3.6V |
| working current | 8.7mA |
| Self-test current | 2.2mA |
| Dormant current | 0.5uA |
| Working temperature | -40℃-125℃ |
| Transmit frequency | 433.92MHZ |
| Transmit power | >-12dBm |
| Dimensions | 5.3cm(length)*3.5cm(width)*1.4cm(height)(excluding valve) |
| Warranty | Sensors Warranty Within 12 months after delivery day |
| Pressure range | 0psi~203psi |
| Type | tpms Valve type sensors |
Product attention:
Incorrectly installation will affect the use of this product or make damage. experienced technician is preferred to install this product. please be careful not to damage the sensor transmitter when disassembling tires again. Valve of internal sensor is not available for repeat assembling/disassembling.
Please use power cable provided by factory. It is not allowed to tie receiver by power cable, as I will damage product or effect signal . And you will lose warranty
Esteemed customer:
Thank you for buying our Tire pressure Monitoring System (TPMS). This system makes you more safety when driving.It can real-time monitor tire pressure and temperature conditions.
If detected any abnormal pressure and temperature of tires, the system will transmit real-time voice alarm and flash warning icon to remind the driver.
Real-time monitoring and warning can not only avoid risk of traffic accident but also make passenger safety.
In addition, this system can effectively help improve the vehicle comfortableness and driving safety, reduce vehicle wear, save fuel consumption and avoid risk of flat tire.
Please read the instruction carefully before using this product. If there is any misunderstanding,please consult distributor or phone customer service, thanks!
